Water Quality Controller BM20WQC001

The purpose of this product is to monitor water quality parameters in-order to make proper action to maintain abnormal conditions like PH shoot up, ammonia level increments etc.

This model is no longer sold. The page is kept as a reference for existing owners, and our team can still help with support questions.

  • 5W
  • Supply input voltage: 230v AC 50Hz
Water Quality Controller BM20WQC001

Overview

The purpose of this product is to monitor water quality parameters in-order to make proper action to maintain abnormal conditions like PH shoot up, ammonia level increments etc. It helps to avoid massive fish die-offs due to toxic water. It provide easy reading of parameters without a human effort which are time consuming chemical tests (liquid test and shade test). Also helps to maintain a good data logs.

Features

Data loggingYes (with communication controller )
Data backupYes (with communication controller )
Cloud memory backupYes (with communication controller )
Wi-Fi connectivityYes (with communication controller )
Other device connectivityYes (with communication controller )
Bluetooth connectivityNo
SIM connectivityNo
GUI connectivityYes
AC error detectionNo
PH value detection (optional)Yes
DO value detection (optional)Yes
ORP detection (optional)Yes
Turbidity detection (optional)Yes
Suspended solid(TSS) detection (optional)Yes
Ammonia detection (optional)Yes
COD detection (optional)Yes
Nitrate Nitrogen detection (optional)Yes
Temperature detection (optional)Yes
Conductivity detection (optional)Yes
Automatic water level controlNo
Dry run sensing for motorNo
Weather proofYes
ModeNA
Note: parameters can be customized based on requirements; Total numbers of parameters are 5.

Specification

ModelBM20WQC001
Supply input voltage230v AC 50Hz
Operating voltage5v
Rated power5W
Cabinet materialPlastic ABS
Working temperature-40°C to 45 +°C
Mounting typeRail mount
Sensor voltage5 – 12V
InputRS485 communication
OutputOpto Coupler Digital Output
SensorPH, EC, DO, ORP, Turbidity, Suspended solid, Ammonia, COD, Nitrate Nitrogen, Temperature, Conductivity sensors.
ActuatorsNo
DisplayNo
RTC moduleYes
LED indicationYes
Security alarmNo
Note: parameters can be customized based on requirements; Total numbers of parameters are 5.

Connection Diagram

Wiring diagram of the BudMore water quality monitor with pH, DO, NH3 and temperature sensors on RS485

Images & Videos

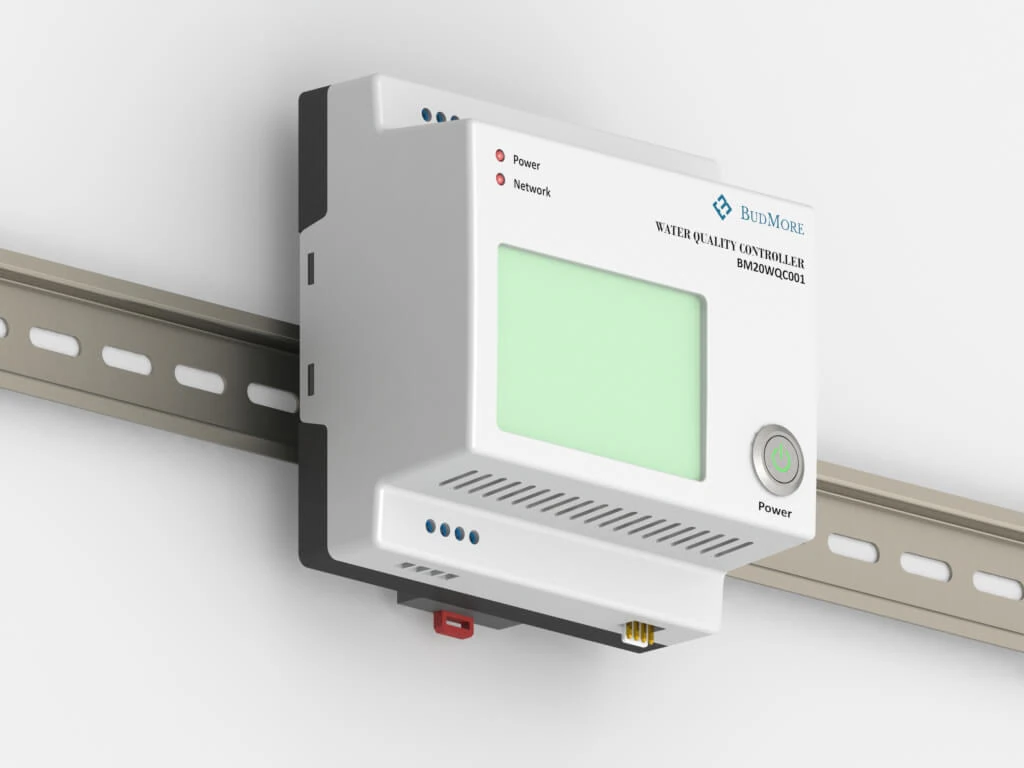

BudMore BM20WQC001 water quality controller on a DIN rail, angled view with display

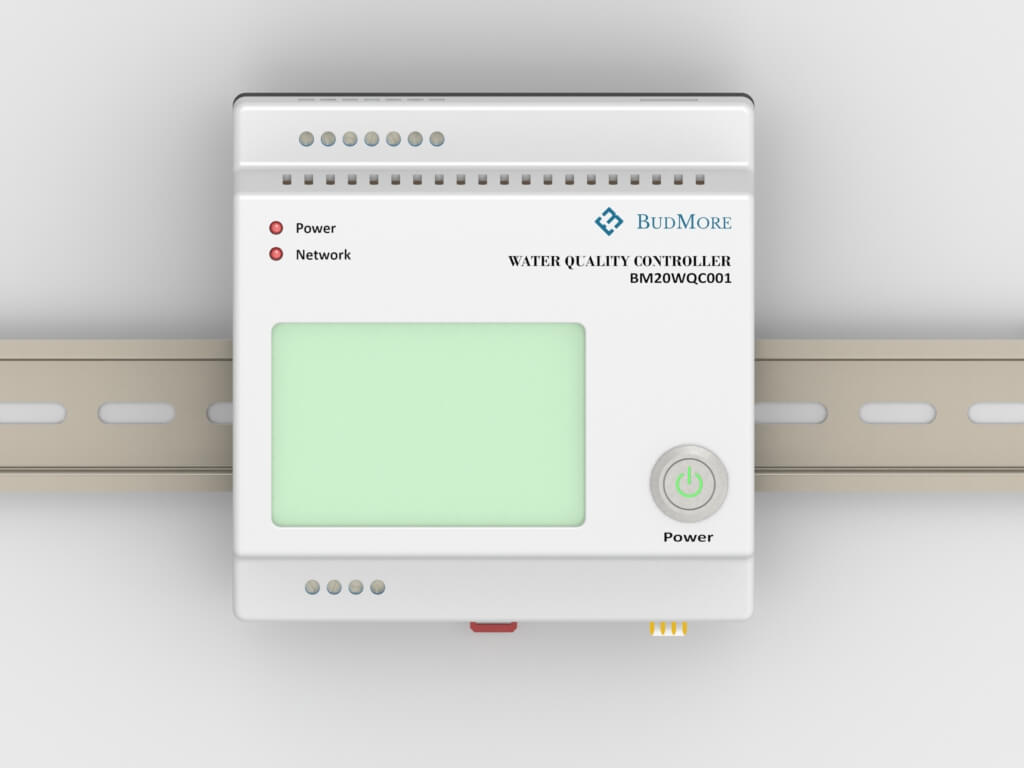

BudMore BM20WQC001 water quality controller, front view with display, status lights and power button

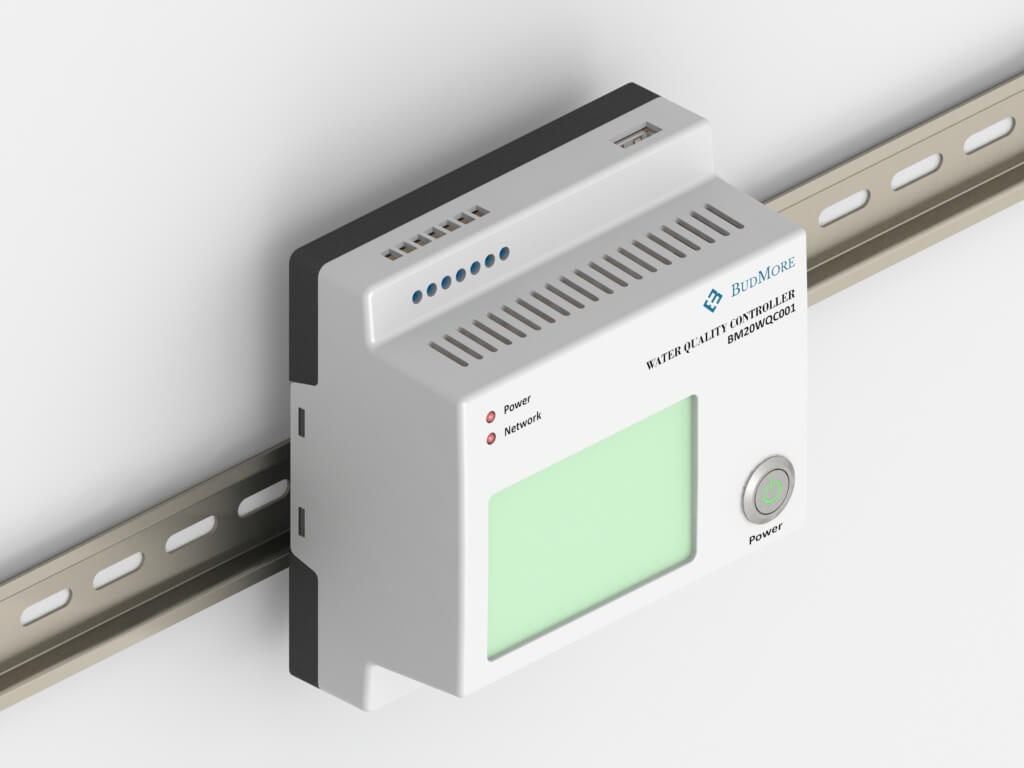

BudMore BM20WQC001 water quality controller mounted on a DIN rail, side angle view
