Water Level Sensors

Water Level Sensor (Ball Type)

The SERIES CFS2 Cable Float Switches is a mechanically actuated floating switch intended to activate electrical components, such as pumps, to start and stop automatically.

  • BM SERIES CFS2
  • T70U
  • Circuit Breaking Capacity : Directly KW with 250V
Water Level Sensor (Ball Type)

Overview

The SERIES CFS2 Cable Float Switches is a mechanically actuated floating switch intended to activate electrical components, such as pumps, to start and stop automatically. The CFS2 is perfect for simple level control of liquids for filling or draining reservoirs and tanks. Float switches such as the CFS2 are the most universally used for pump automation, due to their high reliability, economical pricing, and easy installation. Counterweights and cable hangers are available to suit a variety of mounting applications

Features

  • Automatic water level control product
  • Uses micro-switches or mercury switches as contact output
  • Water level monitoring
  • Tank level control
  • High or low level alarm
  • Municipal water control
  • Industrial water control
  • Filling or draining reservoirs and tanks
  • Pump automation

Wiring details:

LabelName
BlueNO
RedNC
BlackCOM

Specification

ModelSERIES CFS2
Weight1 kg
Micro switch :10(8)A250V~10(4)A380V
Protective Connection :T70U
CABLE LENGTH :2 M
Protection :Waterproof
Medium Temperature :70 oC.
Medium Working Pressure :Max 1 Bar
Circuit Breaking Capacity :Directly KW with 250V
Material of the Float :Poly Propylene
Standard Packing :White Box with User Manual
Weight1 kg

Connection Diagram

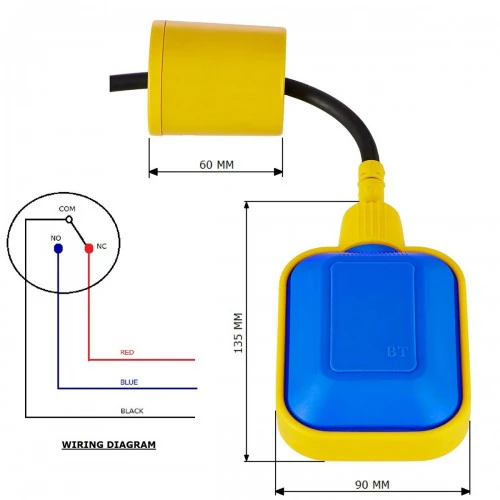

Ball-type float level switch with dimensions and wiring diagram for COM, NO and NC
