Discontinued product

Water Level Controller BM20WLC001

Water level controller maintains the water level in the pool. And it reduces human effort with sensor-based automation. Monitoring the level of water continually.

This model is no longer sold. The page is kept as a reference for existing owners, and our team can still help with support questions.

  • 5W
  • Supply input voltage: 230v AC 50Hz
Water Level Controller BM20WLC001

Overview

Water level controller maintains the water level in the pool. And it reduces human effort with sensor-based automation. Monitoring the level of water continually.

Features

Data loggingNo
Data backupNo
Cloud memory backupNo
Wi-Fi connectivityNo
Bluetooth connectivityNo
SIM connectivityNo
GUI connectivityYes
Other device connectivityYes
AC error detectionYes (as digital Input)
Automatic water level controlYes
Dry run sensing for motorYes
Weather proofYes
ModeNA

Specification

ModelBM20WLC001
Supply input voltage230v AC 50Hz
Operating voltage5v
Rated power5W
Cabinet materialPlastic ABS
Working temperature-40°C to 45 +°C
Mounting typeRail mount
Sensor voltage5 – 12V
InputDigital Sensor
OutputRelay NO (Normally Open) contact
SensorFloat Sensor, Dry run sensor
ActuatorsWater Pump ( 1Hp 230v max) Inlet water pump & Drain water pump
DisplayNo
RTC moduleYes
LED indicationYes
Security alarmNo

Connection Diagram

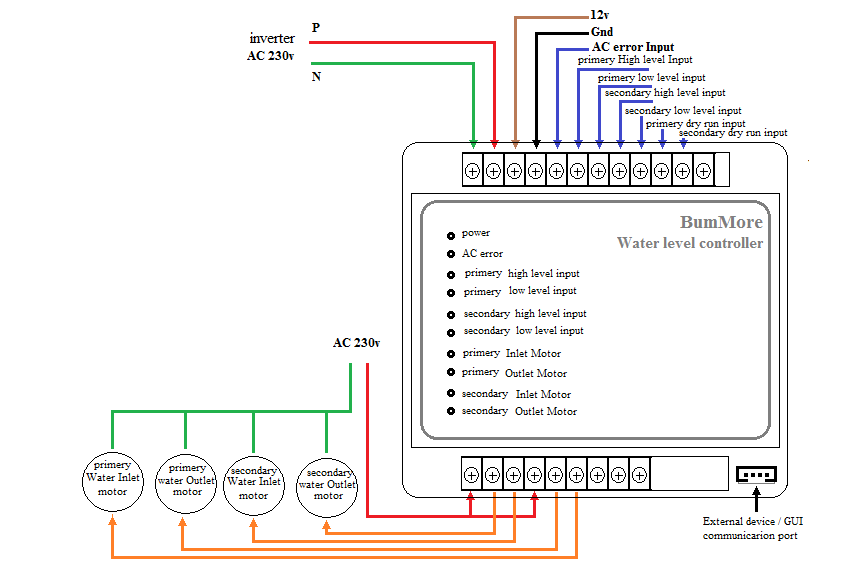

Wiring diagram of the BudMore water level controller with primary and secondary inlet and outlet motors

Images & Videos

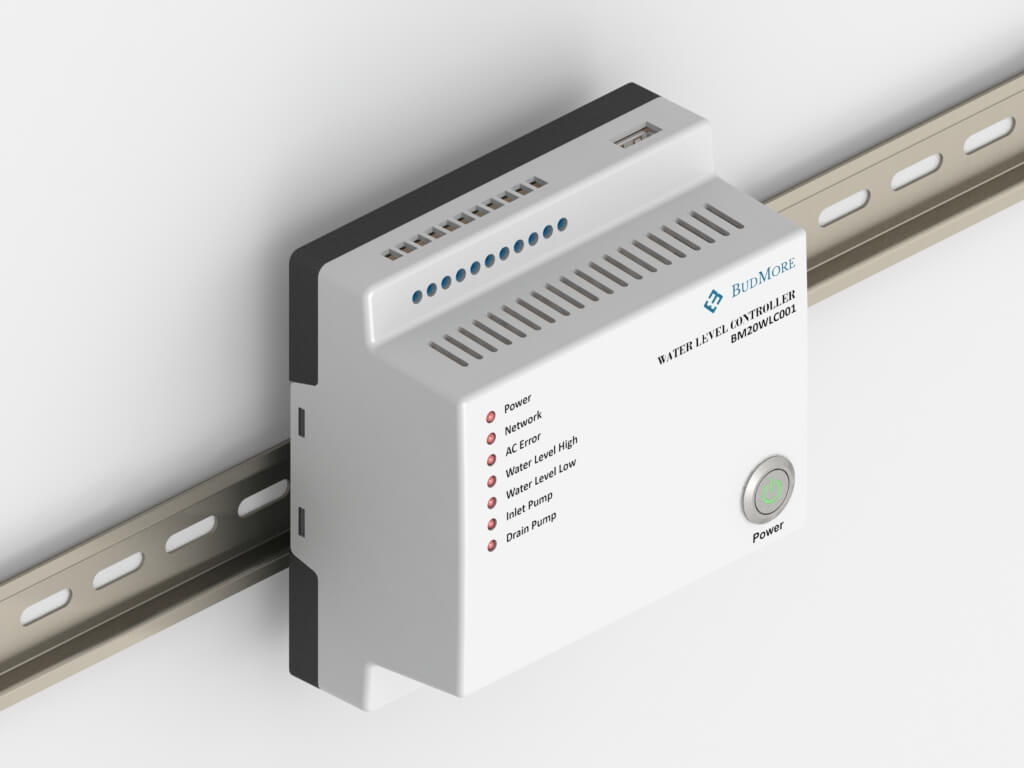

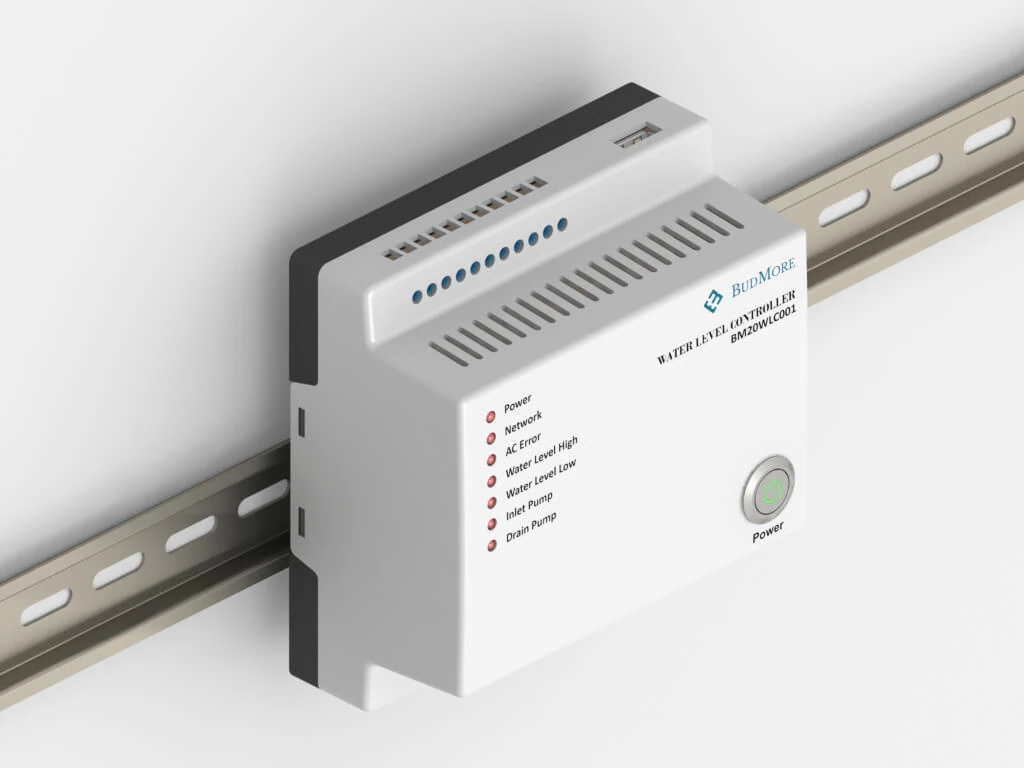

BudMore BM20WLC001 water level controller on a DIN rail, angled view

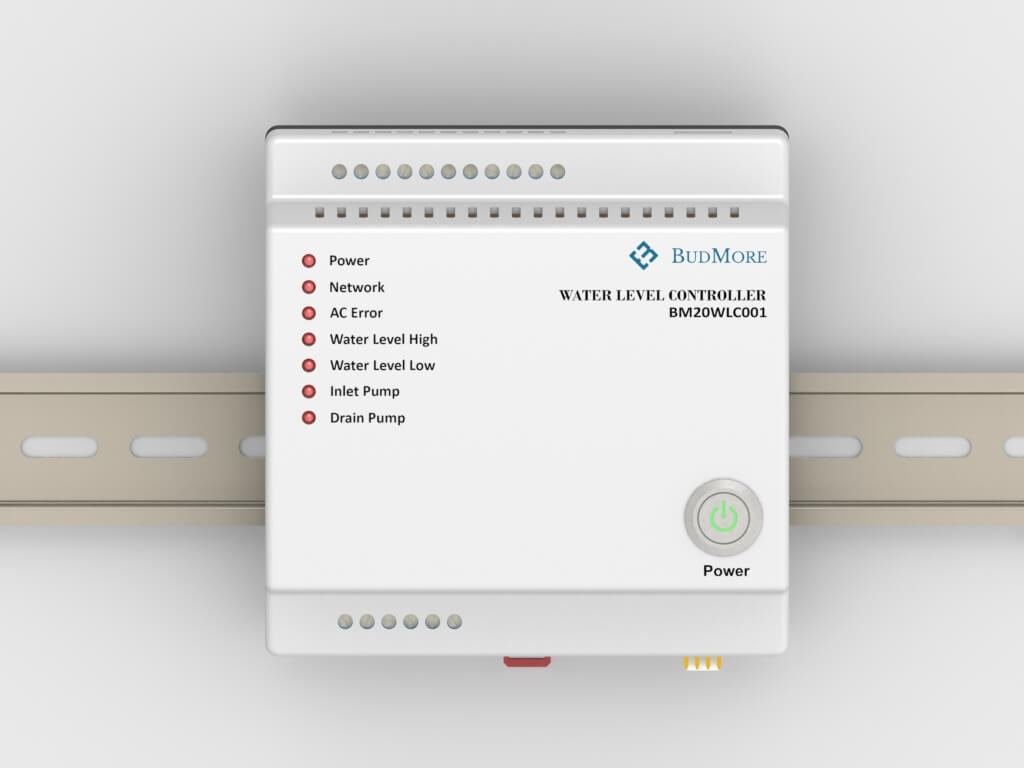

BudMore BM20WLC001 water level controller, front view with water level and pump status lights

Water Level Controller

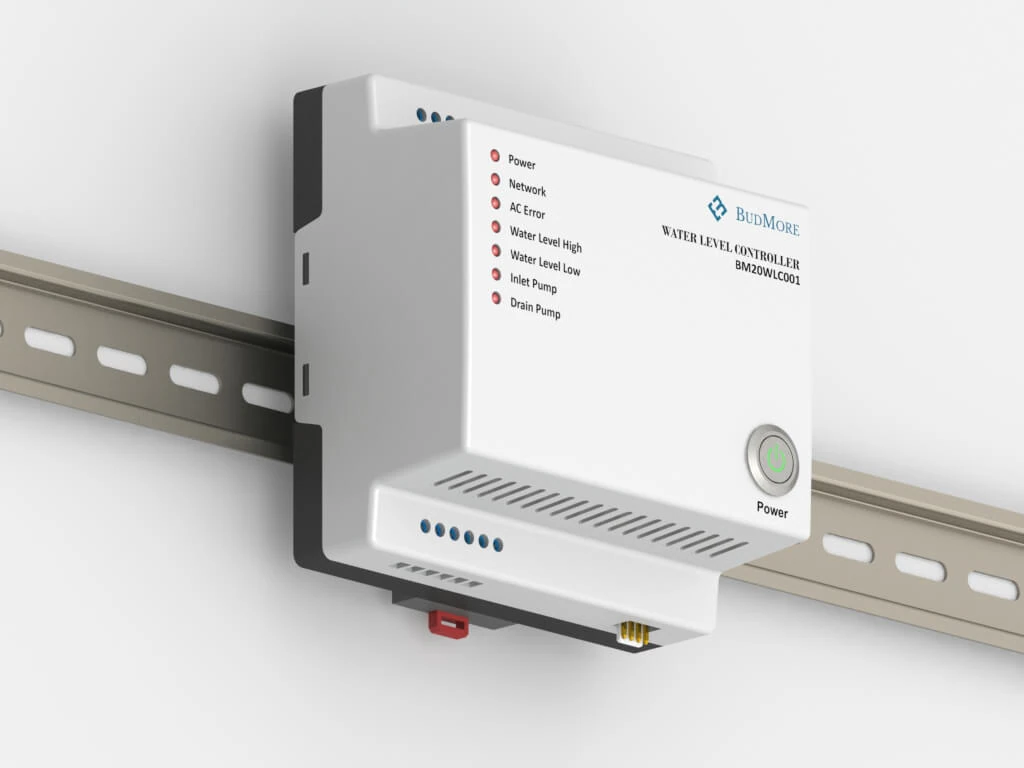

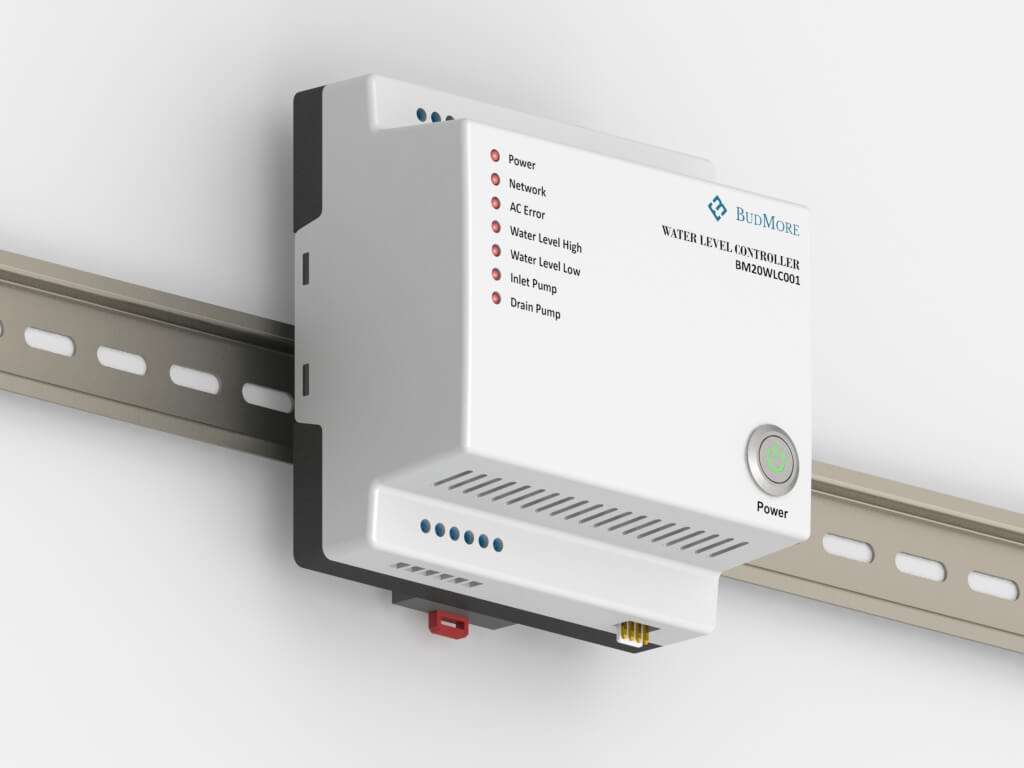

BudMore BM20WLC001 water level controller mounted on a DIN rail, side angle view
