Pressure sensor

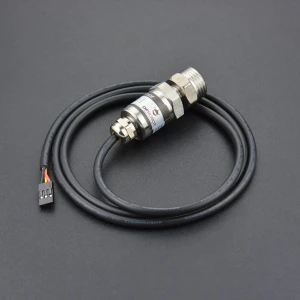

This is a water pressure sensor. It supports standard 5V voltage input and 0.5~4.5V linear voltage output. Briefly speaking, this water pressure sensor is a stethoscope to a water pipe.
- Gravity-3Pin
- 0.5~4.5 V
- Pressure Measurement Range 0~1.6 Mpa

Gravity-3Pin
Overview
This is a water pressure sensor. It supports standard 5V voltage input and 0.5~4.5V linear voltage output. Briefly speaking, this water pressure sensor is a stethoscope to a water pipe. It will help you to diagnose whether there is water, how strong the water pressure is.
Features
- Support water pressure detection of living environmental water systems, such as houses, gardens and farms.
- Support water pressure detection of outdoor environment, such as rivers, lakes and sea.
- Support water pressure detection of tanks.
- Support liquid level detection in special situation.
Wiring details:
| Label | Name | Description |
| Yellow | Signal(Output:0.5~4.5V) | Analog Signal |
| Red | VCC(5VDC) | + |
| Black | GND | – |
Specification
| Model | Gravity-3Pin |
|---|---|
| Pressure Measurement Range | 0~1.6 Mpa |
| Input Voltage | +5 VDC |
| Output Voltage | 0.5~4.5 V |
| Measurement Accuracy | 0.5%55oC |
| Adapter (metallic connector) | G1/2 to G1/4 |
| Waterproof Level | IP68 |
| Operating Temperature | -20~85°C |
| Response Time | <2.0 ms |
| Quiescent Current | 2.8 mA |
| Normal Operating Pressure | ≤2.0 Mpa |
| Damaged Pressure | ≥3.0 Mpa |
| Service Life | ≥10’000’000 times (10 million) |

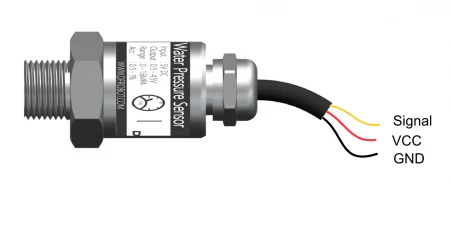

Connection Diagram
