Discontinued product

Power Monitoring Controller BM20PM001

Energy and power monitor system calculates the power consumption of an individual motor (5 maxnumber). And also check whether the source voltage is under voltage or overvoltage.

This model is no longer sold. The page is kept as a reference for existing owners, and our team can still help with support questions.

  • Power monitor
  • 5W
  • Supply input voltage: 230v AC 50Hz
Power Monitoring Controller BM20PM001

Overview

Energy and power monitor system calculates the power consumption of an individual motor (5 maxnumber). And also check whether the source voltage is under voltage or overvoltage. Digital acknowledge to other devices

Features

Data loggingYes (with communication controller )
Data backupYes (with communication controller )
Cloud memory backupYes (with communication controller )
Wi-Fi connectivityYes (with communication controller )
Other device connectivityYes (with communication controller )
Bluetooth connectivityNo
SIM connectivityNo
GUI connectivityYes
AC error detectionYes (as Output)
Automatic water level controlNo
Dry run sensing for motorNo
Weather proofYes
ModeNA

Specifications

ModelBM20PM001
Supply input voltage230v AC 50Hz
Operating voltage5v
Rated power5W
Cabinet materialPlastic ABS
Working temperature-40°C to 45 +°C
Mounting typeRail mount
Sensor voltage5 – 12V
InputAna log Sensing
OutputOpto Coupler Digital Output
SensorCurrent sensors
ActuatorsNo
DisplayYes ( touch display)
RTC moduleYes
LED indicationYes
Security alarmNo

Connection Diagram

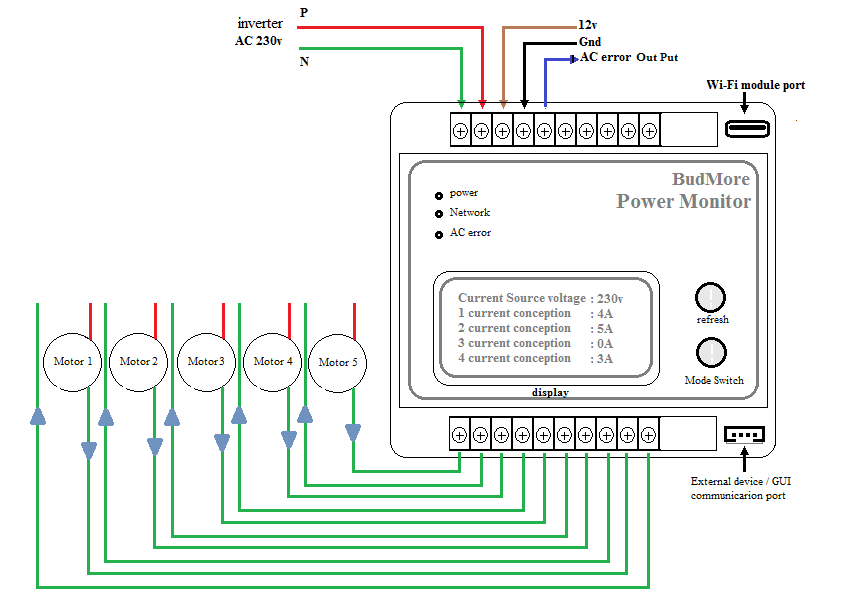

Wiring diagram of the BudMore power monitor measuring current on five motors

Images & Videos

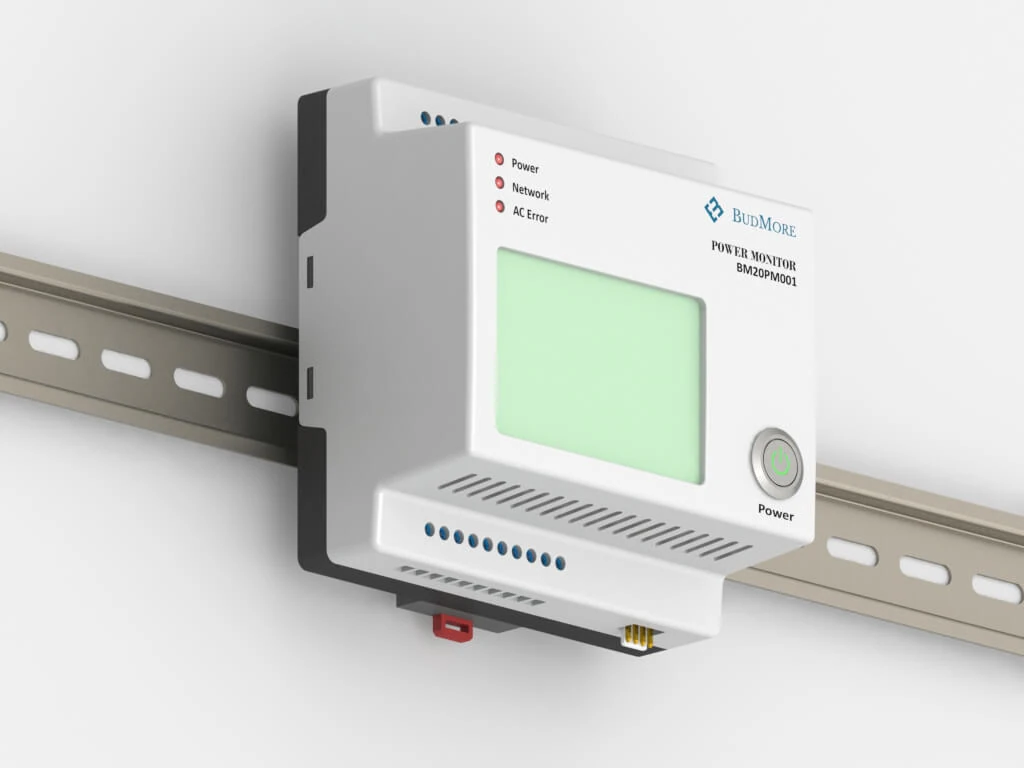

BudMore BM20PM001 power monitor on a DIN rail, angled view with display and AC error light

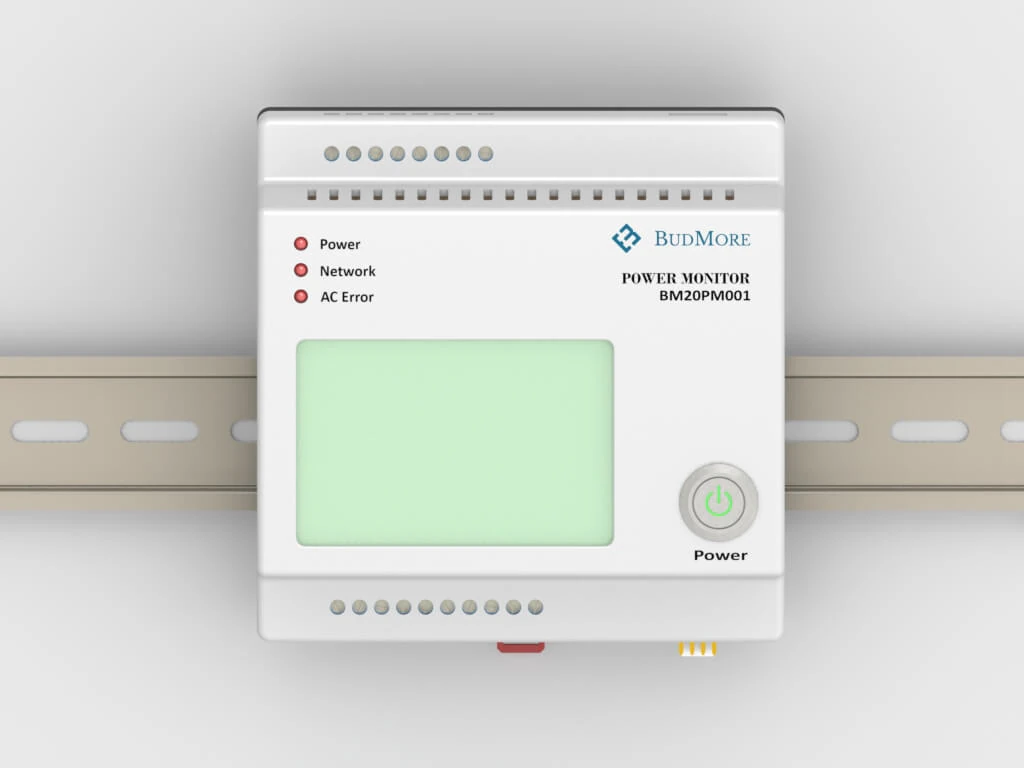

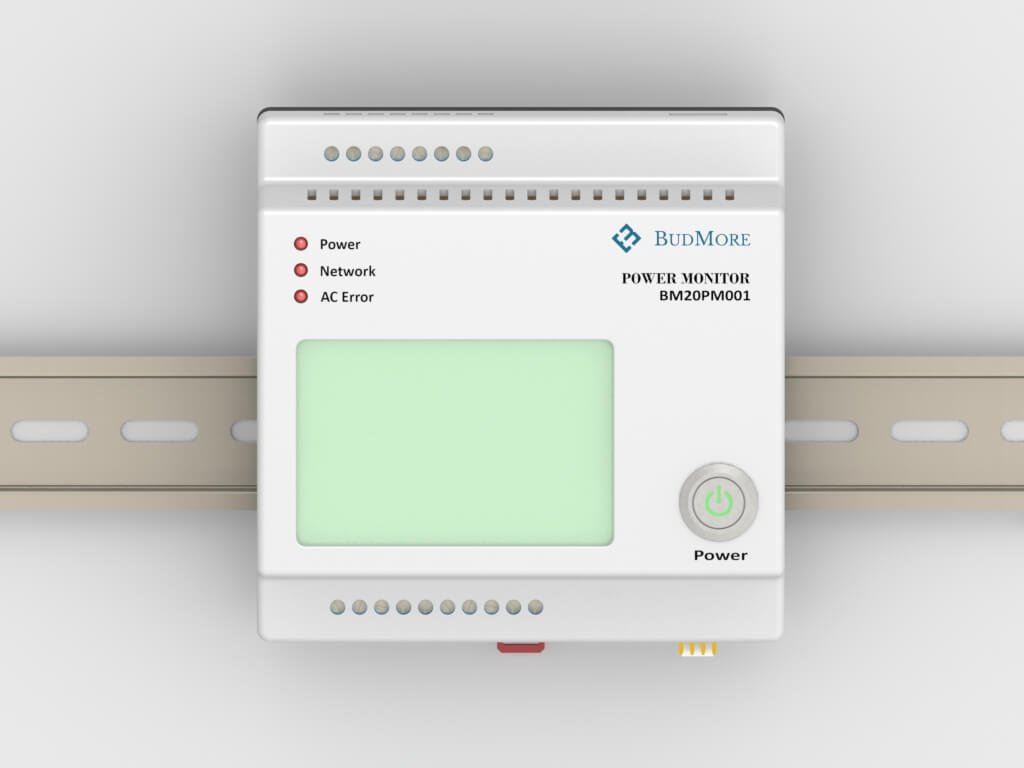

BudMore BM20PM001 power monitor, front view with display, status lights and power button

Power Monitor

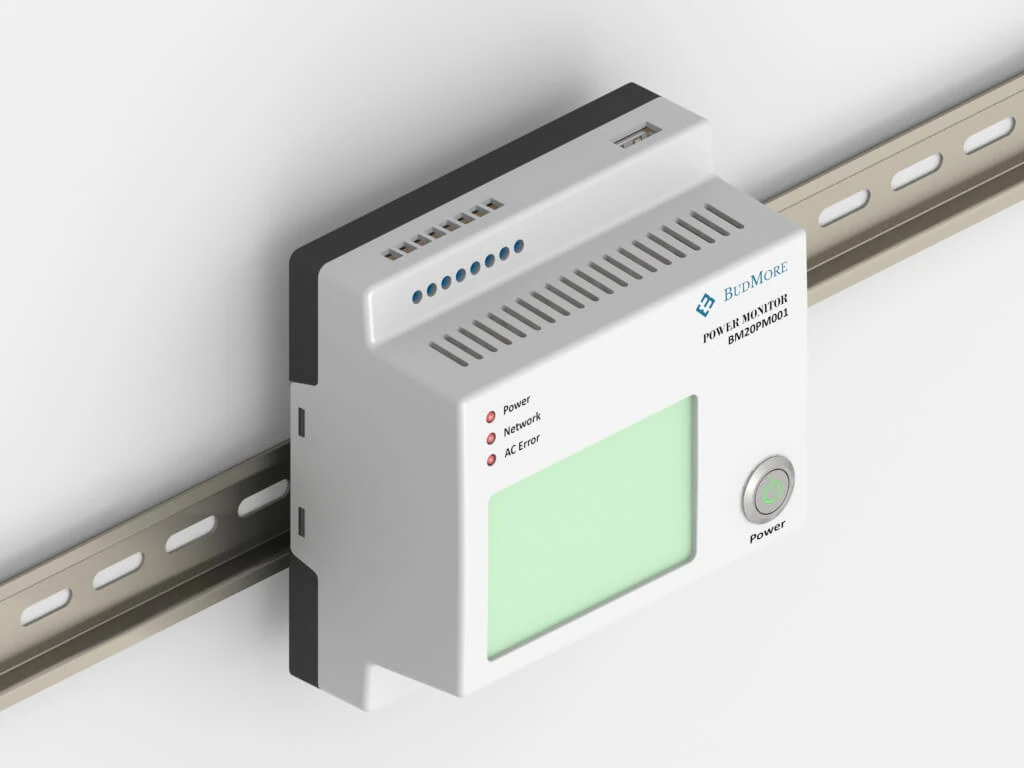

BudMore BM20PM001 power monitor mounted on a DIN rail, side angle view
