PIR sensor

Using the automatic control product of infrared technology, when people walk into the sensor range, and the sensor can detect the spectral change of the human body infrared ray, during this time, the switch will connect the load automatically until the person leaves the sensor range.

  • 1200W
  • Power Requirement 220V - 240V 50-60 Hz
PIR sensor

Overview

Using the automatic control product of infrared technology, when people walk into the sensor range, and the sensor can detect the spectral change of the human body infrared ray, during this time, the switch will connect the load automatically until the person leaves the sensor range. 2, through the photosensitive control, it will not turn on the lights in the daytime or light environment, but also can be adjusted in any lighting environment sensing lights.

Features

  • Sensitivity Adjustable: Turn on Lights during Day or nights
  • It can use with lamps, incandescent lamps (bulbs), old-fashioned fluorescent lamps, electronic fluorescent ring lamps, spotlights, transformers, small electrical appliances, and other all other appliance
  • Good solution for energy saving and easy in installation. and Delay adjustment: 10 Seconds – 7 Minutes and Adjustable Lux: turn on the lights during the day or night

Wiring details:

Diagram of PIR sensor coverage from a wall mount at 2.5 m, detecting over about 12 m
PIR sensor wiring diagram showing red, blue and brown terminals connected to supply and load

Specification

Power Requirement
  • 220V – 240V 50-60 Hz
Power Consumption
  • <0.9W (work)
Battery Type
  • NA
Charge Time
  • 0 min
Use Time
  • 1 min
Other Power Features
  • Rated Load: 1200W (incandescent lamp) <0.9W (static) 300W (energy-saving lamp),
Use Time
  • 1 min
Technology Used
  • PIR Infrared
Remote Control
  • No
  • Working Temperature
  • 20-40 oC
  • Speed
  • 0.6 – 1.5m/s
Ambient Light
  • 10-2000LUX (adjustable)
Working Humidity
  • <93%RH
Time-Delay
  • 10sec – 7min
  • Detection Distance:
  • 6m max

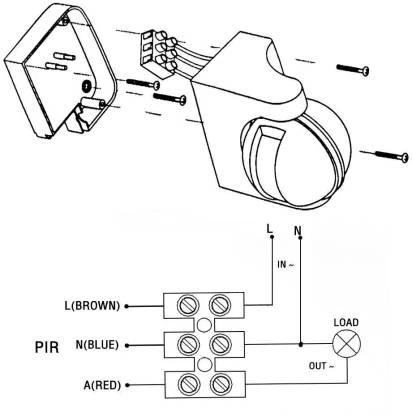

Connection Diagram

Exploded view of a PIR sensor mount with its terminal wiring to live, neutral and load
