Discontinued product

pH MONITOR pH Monitor

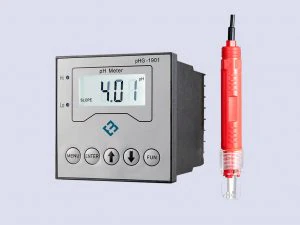

Online pH monitor is precision meters for measurement of pH value of water.

This model is no longer sold. The page is kept as a reference for existing owners, and our team can still help with support questions.

  • 5W
  • Supply input voltage: 230v AC 50Hz
pH MONITOR pH Monitor

Overview

Online pH monitor is precision meters for measurement of pH value of water. With complete functions, stable performance, simple operation and other advantages, they are optimal instruments for industrial/agricultural measurement and control of pH value. Various pH electrodes can be used in this online pH meter.

Features

Data loggingYes(with water quality controller)
Data backupYes
Cloud memory backupYes(with water quality controller)
Wi-Fi connectivityYes(with water quality controller)
Bluetooth connectivityNo
SIM connectivityNo
GUI connectivityNo
Other device connectivityYes(Only with water quality controller)
Automatic water level controlNo
AC error detectionNo
Weather proofYes
Dry run sensing for motorNo

Specification

ModelBM20PHM001
Supply input voltage230v AC 50Hz
Ambient temperature0~60 ºC
Air relative humidity≤ 90%
Measuring range0~14.00pH, Resolution: 0.01pH
Stability≤0.05pH/24h
Precision0.05pH, ± 0.3ºC
InputAnalog Sensing
Output signal4-20mA isolated protection output, dual current output
Control interfaceON/OFF relay output contacts
Communication interfaceRS485(optional)
Relay loadMaximum 240V 5A; Maximum l l5V 10A
Automatic temperature compensation0~100 ºC(pH)5
Manual temperature compensation0~80 ºC(pH)
Current output load750Ω
Weight0.6kg
RTC moduleNo
LED indicationNo
DisplayYes

Connection Diagram

Wiring diagram of the BudMore water quality monitor with pH, DO, NH3 and temperature sensors on RS485

Images & Videos

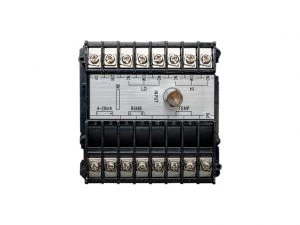

Rear terminal block of the pH monitor with input, RS485, 4-20 mA, relay and temperature connections
