Discontinued product
Multi Parameter Water Quality Monitor BM20WQMM001
Multi-parameter water quality on-line analysis system integration platform, It can directly integrate a variety of water quality online analysis parameters in a whole machine, in the touch screen panel display focused on and management; the system set on-line water quality analysis, remote data transmission, database and analysis Software, system calibration functions in one, the modernization of water quality data collection and analysis provides a great convenience.
This model is no longer sold. The page is kept as a reference for existing owners, and our team can still help with support questions.
- 5W
- Supply input voltage: 230v AC 50Hz

Overview
Multi-parameter water quality on-line analysis system integration platform, It can directly integrate a variety of water quality online analysis parameters in a whole machine, in the touch screen panel display focused on and management; the system set on-line water quality analysis, remote data transmission, database and analysis Software, system calibration functions in one, the modernization of water quality data collection and analysis provides a great convenience.
Features
| Data logging | Yes(with water quality controller) |
|---|---|
| Data backup | Yes |
| Cloud memory backup | Yes(with water quality controller) |
| Wi-Fi connectivity | Yes(with water quality controller) |
| Bluetooth connectivity | No |
| SIM connectivity | No |
| GUI connectivity | No |
| Other device connectivity | Yes(Only with water quality controller) |
| Automatic water level control | No |
| PH value detection (optional) | Yes |
| DO value detection (optional) | Yes |
| ORP detection (optional) | Yes |
| Turbidity detection (optional) | Yes |
| Suspended Solid(TSS) detection (optional) | Yes |
| Ammonia detection (optional) | Yes |
| COD detection (optional) | Yes |
| Nitrate Nitrogen detection (optional) | Yes |
| Temperature detection (optional) | Yes |
| Conductivity detection (optional) | Yes |
| AC error detection | No |
| Weather proof | Yes |
| Dry run sensing for motor | No |
| Note: parameters can be customized based on requirements; Total numbers of parameters are 5. | |
Specification
| Model | BM20MPM001 | |
| Supply input voltage | AC 220V±10% | |
| Measuring range | PH | 0-14.00pH |
| DO | 0-20.00mg/L | |
| ORP | -1999—1999mV | |
| Turbidity | 0-4000NTU | |
| Suspended Solid | 0~120 000mg/L | |
| Ammonia detection | NH4+:0~5000mg/L, NH3-N:0~1000mg/L | |
| COD detection | 0~1000mg/L | |
| Nitrate Nitrogen | 0~100mg/L | |
| Temperature | 0 ~ 50C | |
| Conductivity | 0~2000us/cm(max to 2000ms/cm) | |
| Communication protocol | RS485 Mod bus RTU | |
| Wire less | Yes(with communication controller) | |
| Working condition | Temperature:(0-50)℃ | |
| Communication | RS485(optional) | |
| Protection | IP65 | |
| Storage condition | Related humidity: ≤85% RH(without Condensation) | |
| Display | Yes | |
| Note: parameters can be customized based on requirements; Total numbers of parameters are 5. | ||

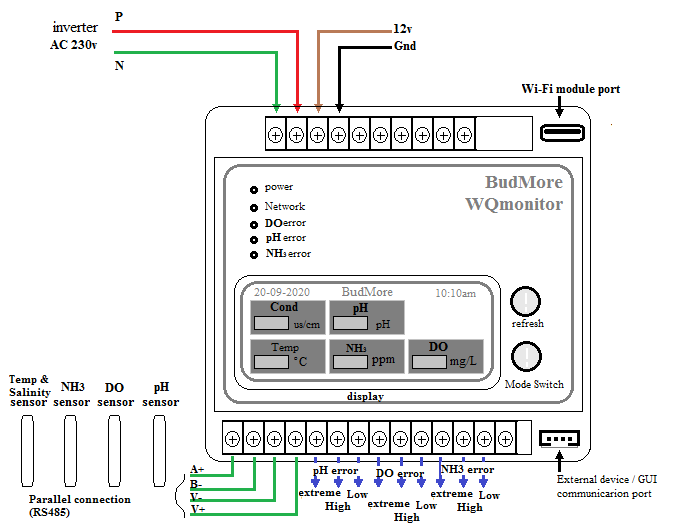

Connection Diagram

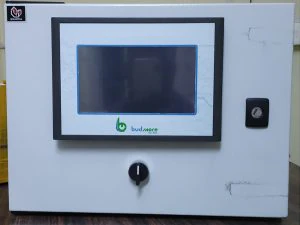

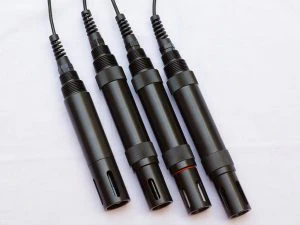

Images & Videos
