Discontinued product

Intruder Detector BM20ID001

Intruder detector continuously monitors the presence of an intruder and ring alarm. It is possible to deactivate the system in working hours or in the physical presence of the farmer.

This model is no longer sold. The page is kept as a reference for existing owners, and our team can still help with support questions.

  • 5W
  • Supply input voltage: 230v AC 50Hz
Intruder Detector BM20ID001

Overview

Intruder detector continuously monitors the presence of an intruder and ring alarm. It is possible to deactivate the system in working hours or in the physical presence of the farmer. Switch on the lights when there is no sufficient Ambient light to see the intruder.

Features

Data loggingYes (with communication controller )
Data backupYes (with communication controller )
Cloud memory backupYes (with communication controller )
Wi-Fi connectivityYes (with communication controller )
Other device connectivityYes (with communication controller )
Bluetooth connectivityNo
SIM connectivityNo
GUI connectivityYes
AC error detectionNo
Automatic water level controlNo
Dry run sensing for motorNo
Weather proofYes
ModeManual and Auto mode

Specification

ModelBM20ID001
Supply input voltage230v AC 50Hz
Operating voltage5v
Rated power5W
Cabinet materialPlastic ABS
Working temperature-40°C to 45 +°C
Mounting typeRail mount
Sensor voltage5 – 12V
InputDigital Sensor
OutputRelay NO (Normally Open) contact
SensorPIR sensor
ActuatorsSecurity light
DisplayNo
RTC moduleYes
LED indicationYes
Security alarmYes

Typical Applications

Wiring diagram of the BudMore intruder detector with PIR sensors, alarm and lamp connections

Images & Videos

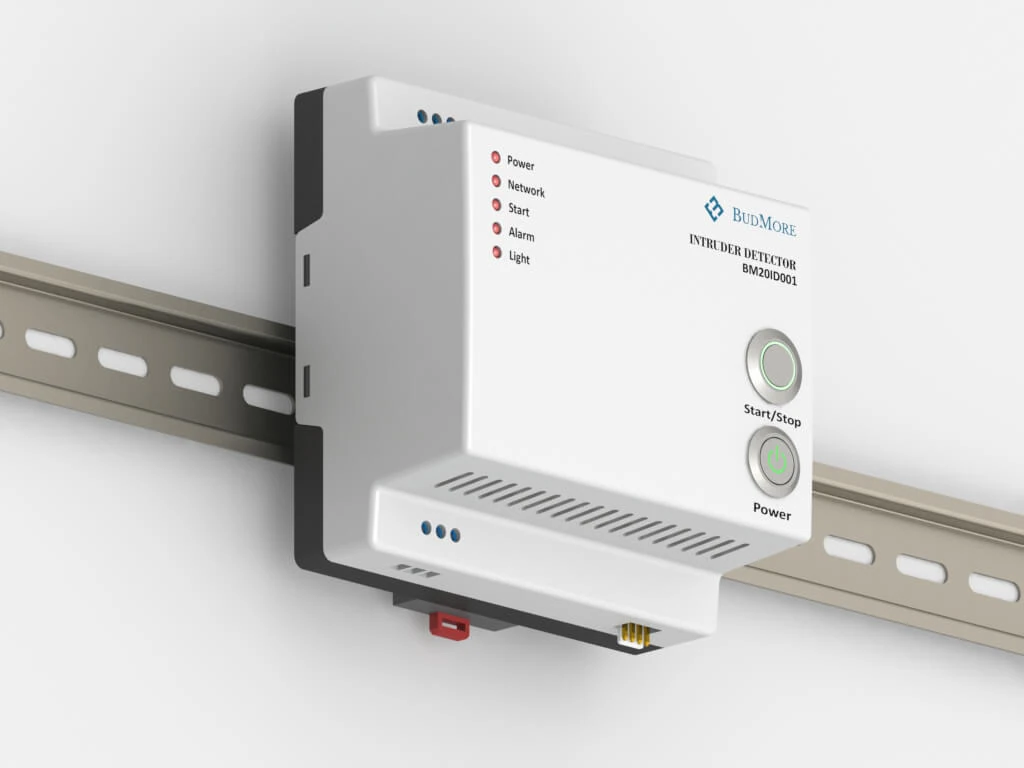

BudMore BM20ID001 intruder detector on a DIN rail, angled view with start/stop and power buttons

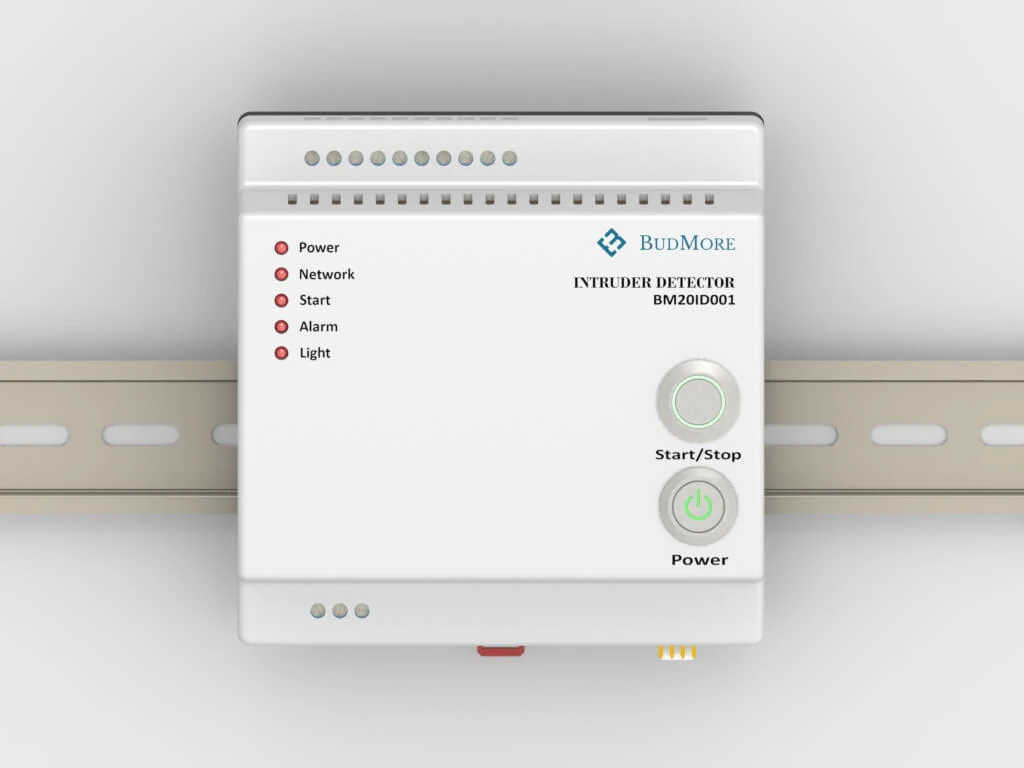

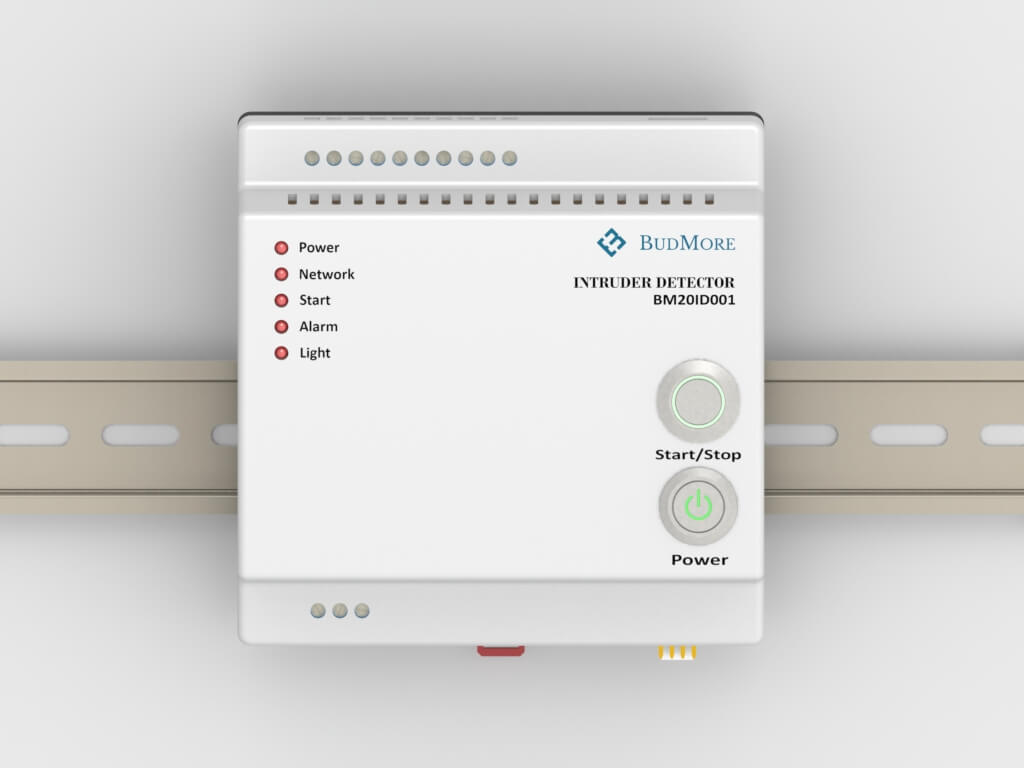

BudMore BM20ID001 intruder detector, front view with power, network, start, alarm and light indicators

Intruder Detector

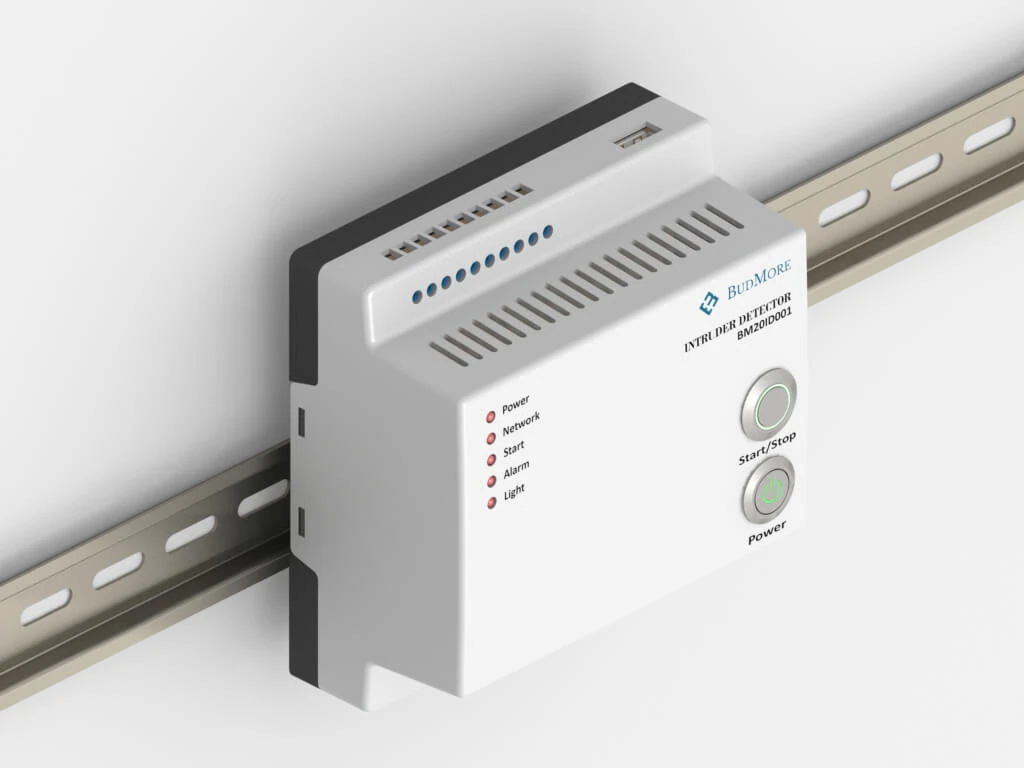

BudMore BM20ID001 intruder detector mounted on a DIN rail, side angle view
