Discontinued product
Filtration Controller BM20FC001
Filter controller filters the water of debris and removes the toxic build-up of ammonia and nitrates. Filter time scheduling allows scheduled filtration with in a time interval.
This model is no longer sold. The page is kept as a reference for existing owners, and our team can still help with support questions.
- Filter controller
- 5W
- Supply input voltage: 230v AC 50Hz

Overview
Filter controller filters the water of debris and removes the toxic build-up of ammonia and nitrates. Filter time scheduling allows scheduled filtration with in a time interval. Pressure monitoring inside the filter chamber. Automatic/ Manual backwash process according to the user desire.
Features
| Data logging | Yes (with communication controller ) |
|---|---|
| Data backup | Yes (with communication controller ) |
| Cloud memory backup | Yes (with communication controller ) |
| Wi-Fi connectivity | Yes (with communication controller ) |
| Other device connectivity | Yes (with communication controller ) |
| Bluetooth connectivity | No |
| SIM connectivity | No |
| GUI connectivity | Yes |
| AC error detection | Yes ( as input) |
| Automatic water level control | Yes |
| Dry run sensing for motor | Yes |
| Weather proof | Yes |
| Mode | Manual, Schedule, Error, Water level |
Specification
| Model | BM20FC001 |
|---|---|
| Supply input voltage | 230v AC 50Hz |
| Operating voltage | 5v |
| Rated power | 5W |
| Cabinet material | Plastic ABS |
| Working temperature | -40°C to 45 +°C |
| Mounting type | Rail mount |
| Sensor voltage | 5 – 12V |
| Input | Digital Sensors, Ana log Sensor |
| Output | Relay NO (Normally Open) contact |
| Sensor | Float Sensor, Pressure sensor |
| Actuators | Water Pump ( 2Hp 230v max) Filter motor, Inlet water pump & Drain water pump, Ball valves |
| Display | No |
| RTC module | Yes |
| LED indication | Yes |
| Security alarm | Yes |

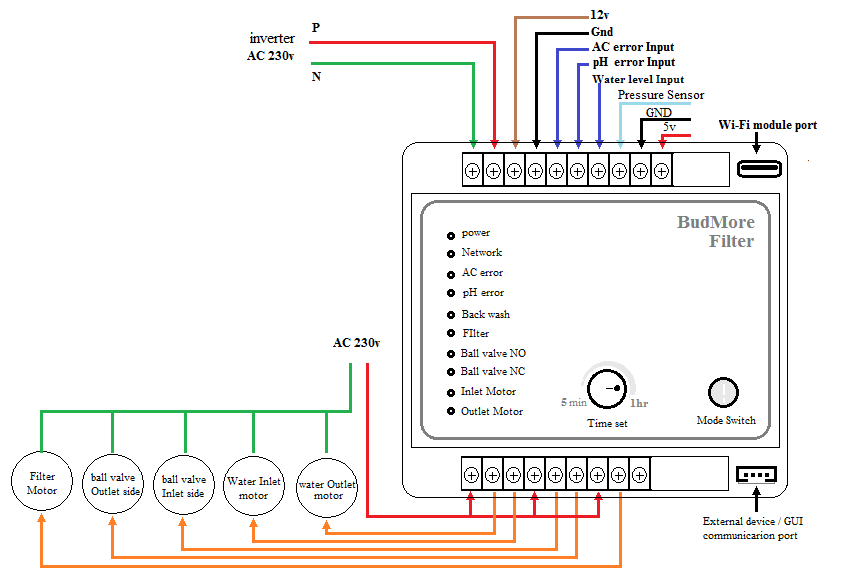

Connection Diagram

Images & Videos

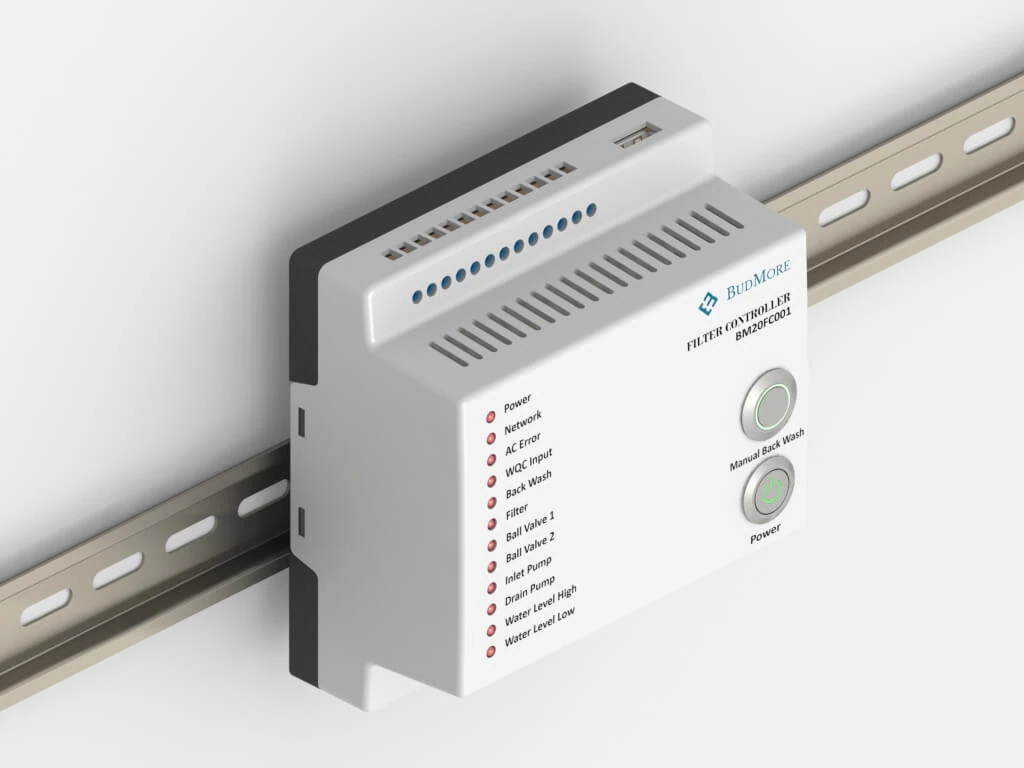

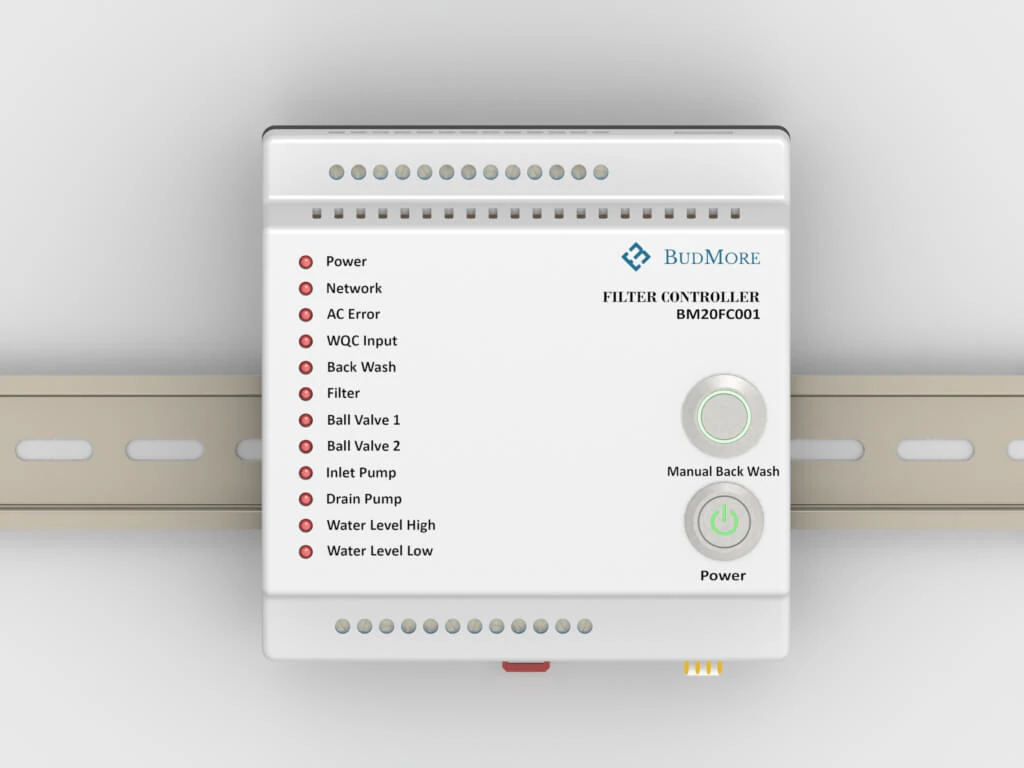

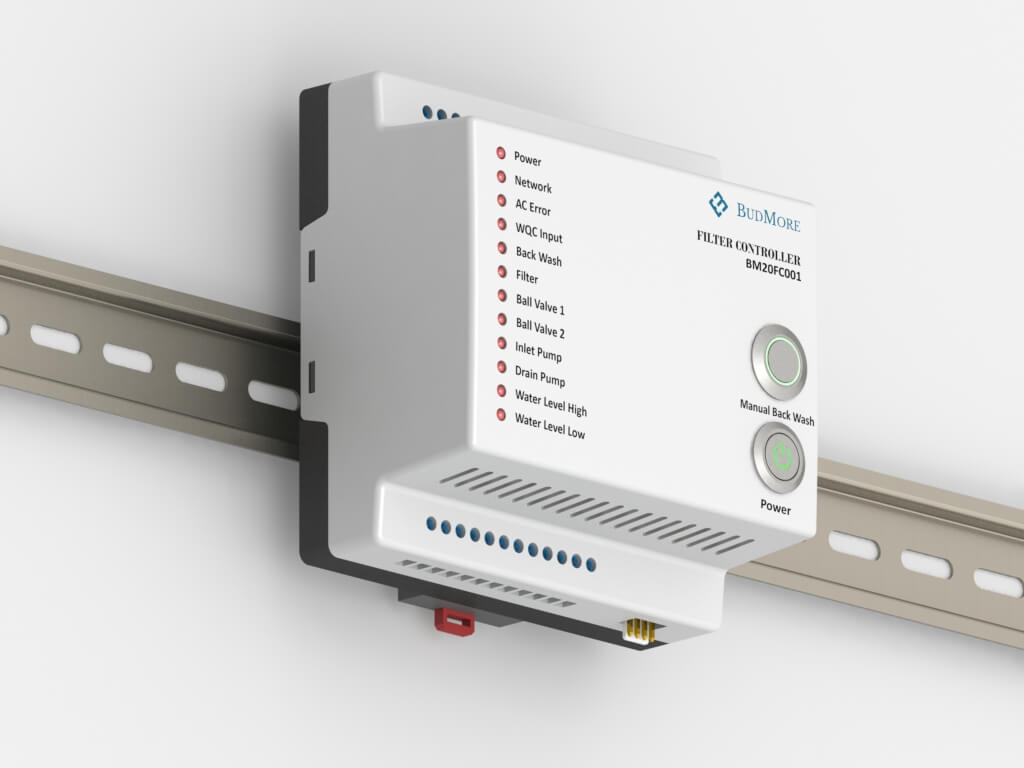

Filter Controller
