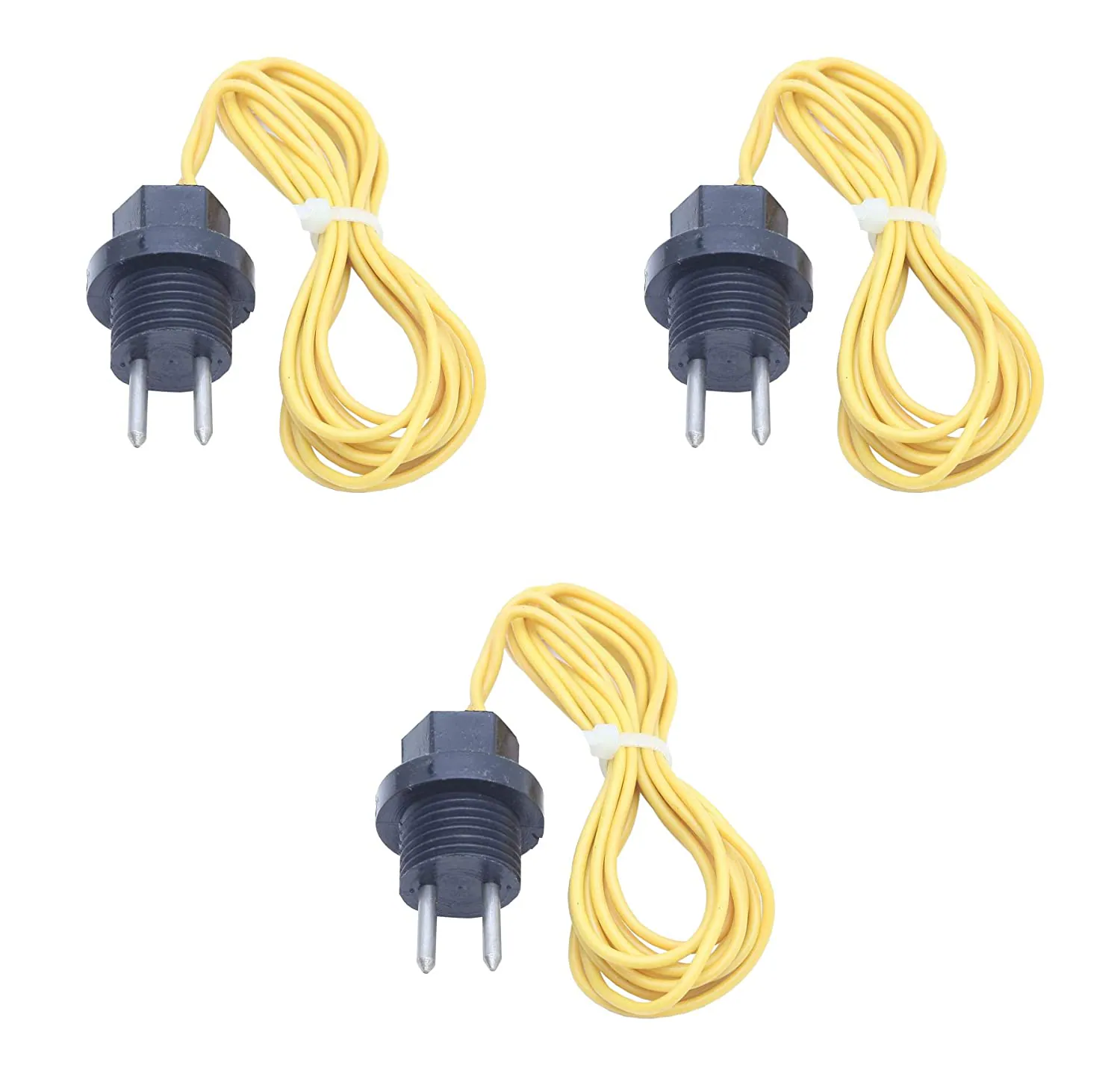

Dry Run sensor BMSSPWLS-02

The Dry Run Sensor is a contact type pipe mount liquid sensor for detecting water flow while the water flows through the pipe.

  • 70g
  • 4.4 x 4.4 x 2.6 cm
Dry Run sensor BMSSPWLS-02

Overview

The Dry Run Sensor is a contact type pipe mount liquid sensor for detecting water flow while the water flows through the pipe.

It is used as an indicator’s switch as well as flow detection sensor which gives input to the controlling unit to avoid dry running of motors.

Features

Features

  • Thread of 1/2 inch for easy installation inside the Tee points
  • Corrosion Free Material
  • SS-316 Stainless Steel
  • Cable Length up to 1 meter
  • Useful for Water level controllers, water level detectors

Wiring details:

Sensor along with 2 wire which connect as a contact switch.

Specification

Technical specification

Product Dimensions4.4 x 4.4 x 2.6 cm
Item Model NumberSSPWLS-02
Item Weight70g
Materialpolypropylene

Connection Diagram

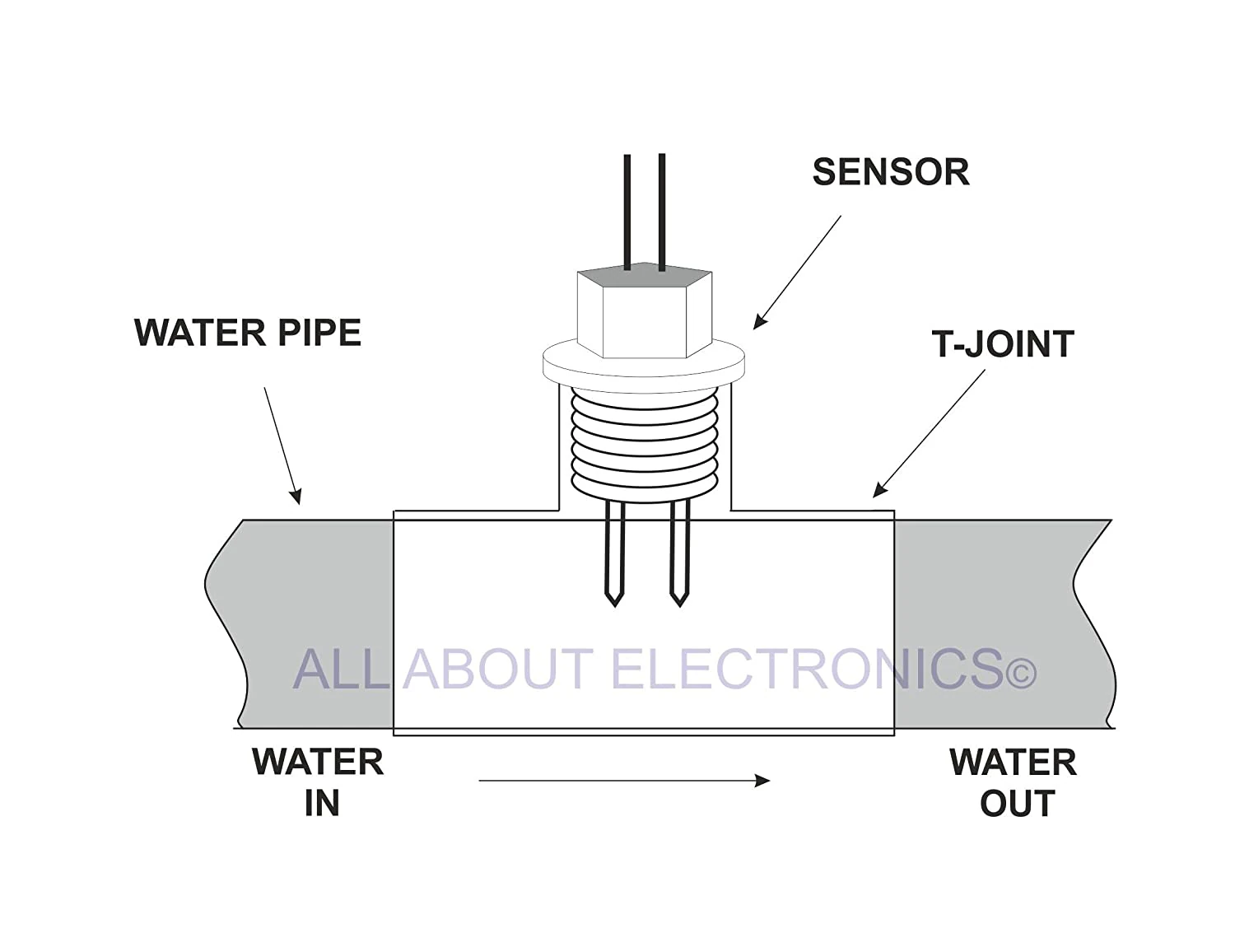

Diagram of a dry run sensor fitted into a water pipe through a T-joint, with water flowing in and out

Images & Videos

Ask about the BMSSPWLS-02

Tell us about your ponds or tanks and we will confirm compatibility, availability and pricing.
