Discontinued product

DO Monitor

DO meters, oxygen meters, measure the amount of oxygen dissolved in an aqueous solution. It is a precision instrument used for testing and control of dissolved oxygen.

This model is no longer sold. The page is kept as a reference for existing owners, and our team can still help with support questions.

  • Dissolved oxygen monitor
  • 0~60ºC
  • Supply input voltage: AC 220V l0%, 50/60Hz
DO Monitor

Overview

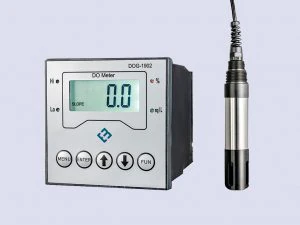

DO meters, oxygen meters, measure the amount of oxygen dissolved in an aqueous solution. It is a precision instrument used for testing and control of dissolved oxygen. Single parameter water quality DO monitor adopts the backlit LCD display, with error indication.

Features

Data loggingYes(with water quality controller)
Data backupYes
Cloud memory backupYes(with water quality controller)
Wi-Fi connectivityYes(with water quality controller)
Bluetooth connectivityNo
SIM connectivityNo
GUI connectivityNo
Other device connectivityYes(Only with water quality controller )
Automatic water level controlNo
AC error detectionNo
Weather proofYes
Dry run sensing for motorNo

Specification

ModelBM20DOM001
Supply input voltageAC 220V l0%, 50/60Hz
Measuring range0.00~1 9.99mg/L 0.0~199.9%
Temperature compensation0~60ºC
Cabinet materialPlastic ABS
Measuring range0.00~1 9.99mg / L Saturation: 0.0~199.9%
Resolution0. 01 mg/L 0.01%
Accuracy±1.5%F.S
Ambient temperature5 – 35ºC
Air relative humidity≤ 80%
InputAnalog Sensing
Output signal4-20mA isolated protection output, double current output available, RS485 (optional)
Weight0.8 kg
Dimensions96x96x115mm
Dimension of the hole92x92mm
Output control modeOn/Off relay output contacts
DisplayYes
LED indicationYes

Connection Diagram

Wiring diagram of the BudMore water quality monitor with pH, DO, NH3 and temperature sensors on RS485

Images & Videos

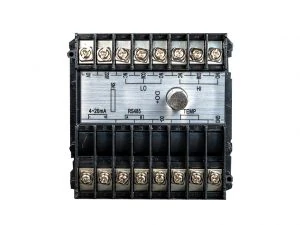

Rear terminal block of the dissolved oxygen monitor with RS485, 4-20 mA, relay and temperature connections
