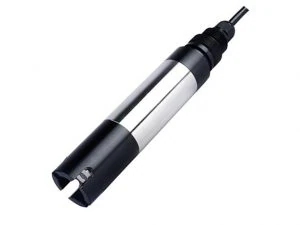

Dissolved Oxygen Sensor BM DOG-209FA

This type of oxygen electrode has improved diaphragm like a grit mesh metal membrane, with high stability and stress resistant, can be used in a more harsh environment, maintenance volume is smaller, suitable for aqua culture, industrial wastewater treatment, environmental monitoring and other fields of continuous measurement of dissolved oxygen.

  • 0-20mg/L
  • Principle : Polarographic C
Dissolved Oxygen Sensor BM DOG-209FA

Overview

This type of oxygen electrode has improved diaphragm like a grit mesh metal membrane, with high stability and stress resistant, can be used in a more harsh environment, maintenance volume is smaller, suitable for aqua culture, industrial wastewater treatment, environmental monitoring and other fields of continuous measurement of dissolved oxygen.

Features

  • Improved from the previously dissolved oxygen electrode.
  • Change diaphragm into a grit mesh metal membrane.
  • High stability and stress resistant.
  • Can be used in a harsher environment.
  • Maintenance volume is smaller.
  • Suitable for urban sewage treatment, industrial wastewater treatment, aquaculture and other fields of continuous measurement of dissolved oxygen.

Specification

ModelDOG-209FA
PrinciplePolarographic
Measuring range0-20mg/L
ThreadM32 * 2.0
Permeable membrane thickness100 um(steel mesh)
Electrode shell materialU PVC or 31 6L stainless steel
Temperature compensationPT100, PT1000, 22K, 2.252K etc.
Detection lower limit0.01 mg/L (20℃)
Sensor life2 years
Cable length5 meters, can be ODM depend on user’s requirements
Polarization time60min
Minimum flow rate2.5cm/s
Drift<2%/month
Measurement error<± 0.1mg/I
Output current50~80nA/0.1mg/L Note: Maximum Current 3.5uA
Polarization voltage0.7V
Zero oxygen<0.1 mg / L (5min)
Calibration intervals>60 days
Measured water temperature0-60℃
ModelDOG-209FA
PrinciplePolarographic
Measuring range0-20mg/L
ThreadM32 * 2.0
Permeable membrane thickness100 um(steel mesh)
Electrode shell materialU PVC or 31 6L stainless steel
Temperature compensationPT100, PT1000, 22K, 2.252K etc.
Detection lower limit0.01 mg/L (20℃)
Sensor life2 years
Cable length5 meters, can be ODM depend on user’s requirements
Polarization time60min
Minimum flow rate2.5cm/s
Drift<2%/month
Measurement error<± 0.1mg/I
Output current50~80nA/0.1mg/L Note: Maximum Current 3.5uA
Polarization voltage0.7V
Zero oxygen<0.1 mg / L (5min)
Calibration intervals>60 days
Measured water temperature0-60℃

Connection Diagram

Dissolved oxygen probe with its protective cap removed, showing the sensing end and O-ring

Images & Videos

End-on view of a dissolved oxygen probe showing the sensing face
