Discontinued product

Communication Controller BM20CMC001

Share internet connection between devices. Collect data from connected devices and upload it to the server periodically. It has a data backup option, for saving data when it loses the network connection.

This model is no longer sold. The page is kept as a reference for existing owners, and our team can still help with support questions.

  • 5W
  • Supply input voltage: 230v AC 50Hz
Communication Controller BM20CMC001

Overview

Share internet connection between devices. Collect data from connected devices and upload it to the server periodically. It has a data backup option, for saving data when it loses the network connection.

Features

Data loggingYes
Data backupYes
Cloud memory backupYes
Wi-Fi connectivityYes
Bluetooth connectivityNo
SIM connectivityNo
GUI connectivityYes
Other device connectivityYes
AC error detectionNo
Automatic water level controlNo
Dry run sensing for motorNo
Weather proofYes
ModeNA

Specification

ModelBM20CMC001
Supply input voltage230v AC 50Hz
Operating voltage5v
Rated power5W
Cabinet materialPlastic ABS
Working temperature-40°C to 45 +°C
Mounting typeRail mount
Sensor voltage5 – 12V
InputNo
OutputNo
SensorNo
ActuatorsNo
DisplayNo
RTC moduleYes
LED indicationYes
Security alarmNo

Connection Diagram

BudMore Wi-Fi modem wiring diagram showing power input, Wi-Fi module port and external device port

Images & Videos

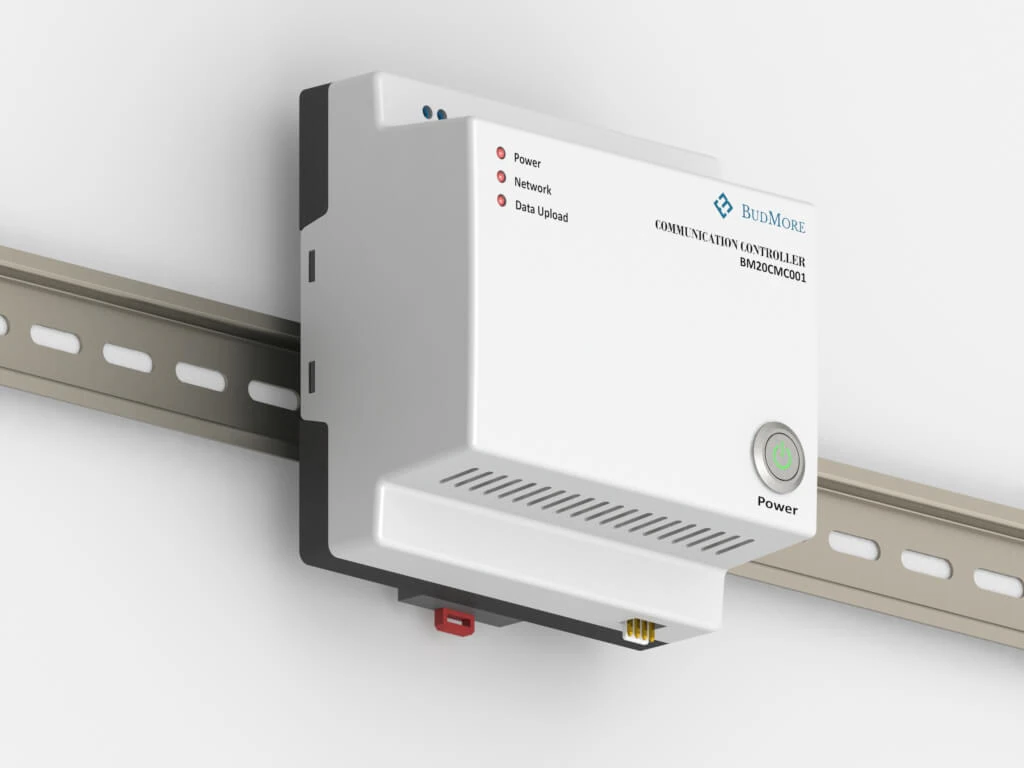

BudMore communication controller mounted on a DIN rail, side angle

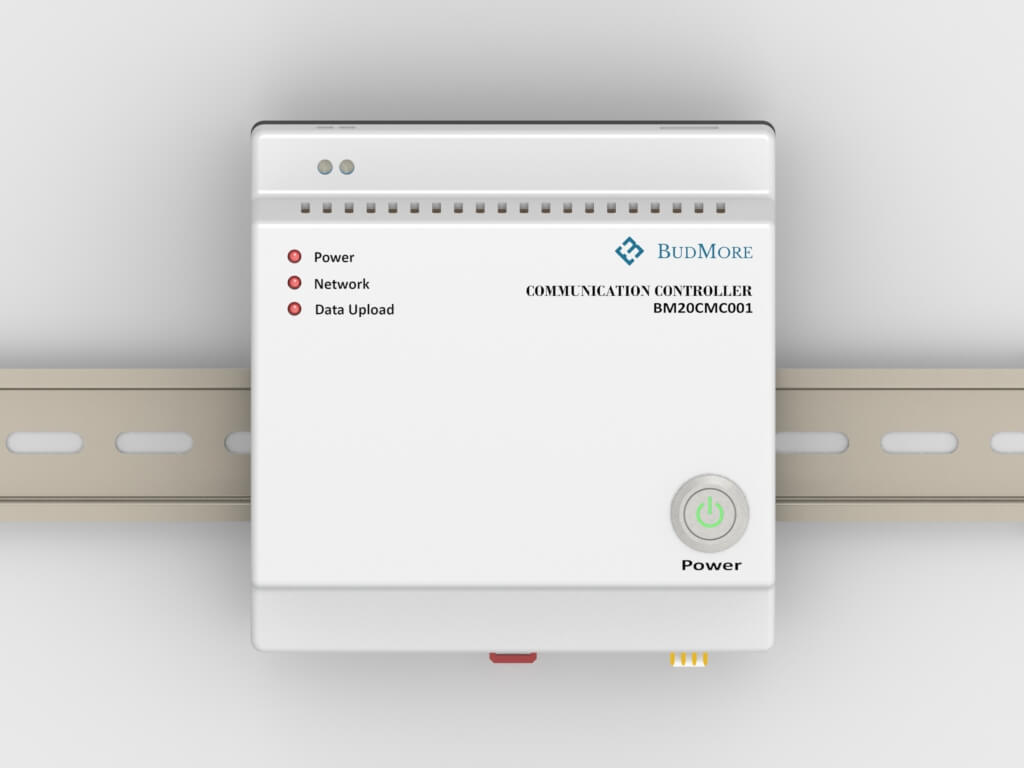

BudMore BM20CMC001 communication controller on a DIN rail, front view with power, network and data upload lights

Communication Controller

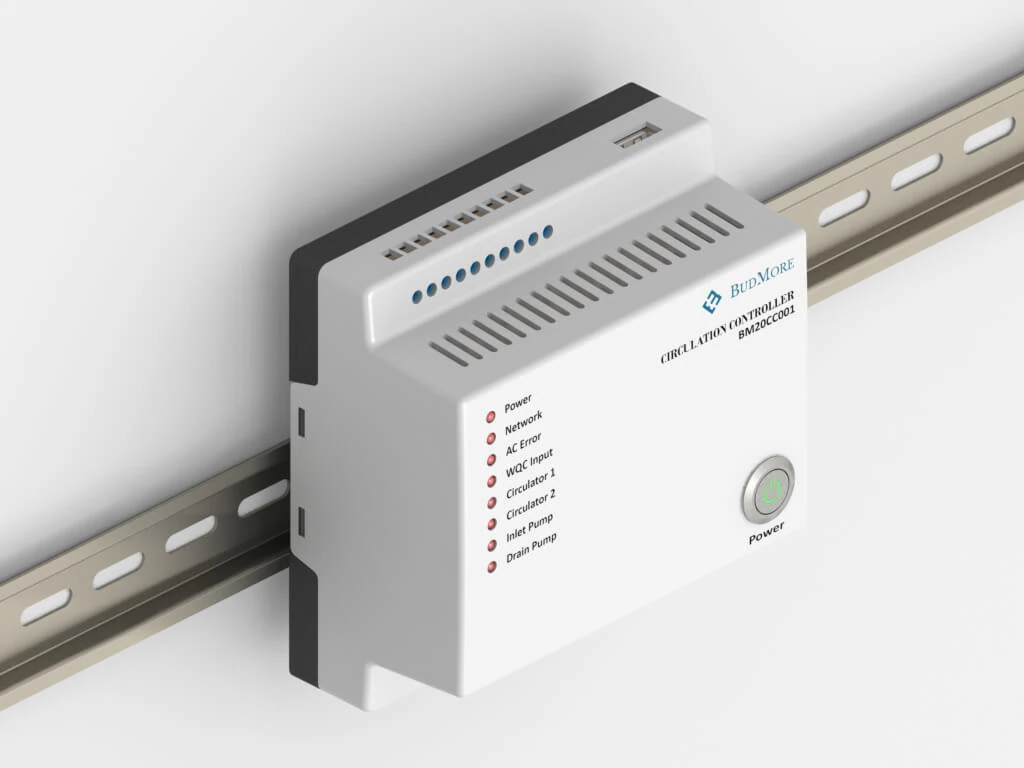

BudMore BM20CC001 circulation controller mounted on a DIN rail, angled view showing status lights and power button
