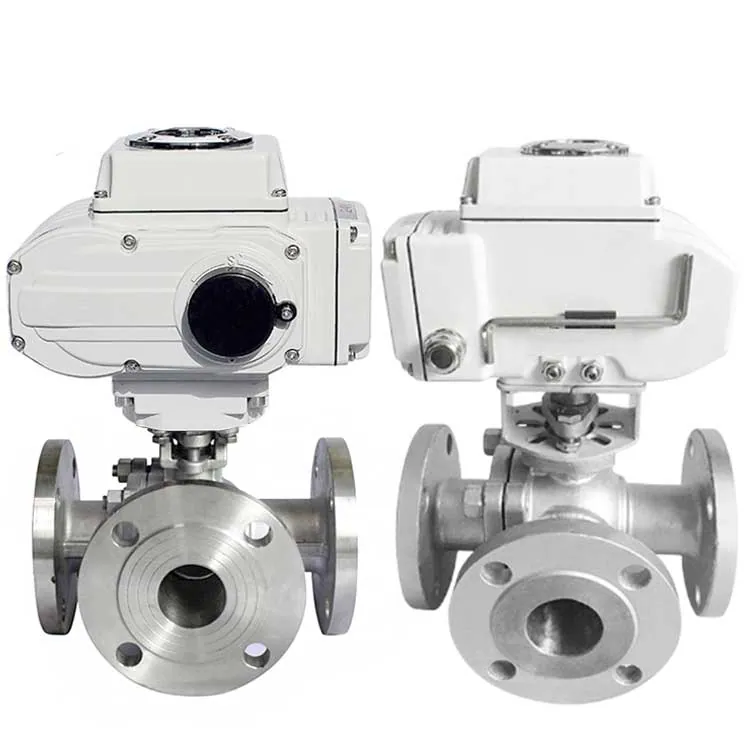

Budmore Flange 3 way Electric Ball Valve

Crafted of stainless steel, Budmore Flange 3 way Electric Ball Valve is suitable for water circulation, filtering process, water level management and other process applications.

  • BM DN08: DN65
  • 50 to 4000Nm
  • Optional Voltage : DC24V (±10%), AC110-220V, 50/60Hz
Budmore Flange 3 way Electric Ball Valve

Overview

Introduction

Crafted of stainless steel, Budmore Flange 3 way Electric Ball Valve is suitable for water circulation, filtering process, water level management and other process applications. Applicable when a flange connection is needed, it is also fire safe. It operates via motorized power which both opens and closes the valve.

Features

  • Fire protection design.
  • ISO5211 standard direct mounting actuator.
  • Antistatic device between the core and the valve body.
  • Stem explosion-proof design.
  • Double butterfly shaped spring automatic compression packing design.
  • Allow pressure differential: Less than nominal pressure 1.6MPa.
  • Leakage: Zero leakage
  • Return difference: ±2.5%

Specification

Size RangeDN08 – DN65
Operating Pressure1.0MPa – 6.4MPa
End ConnectionThreaded, Butt Welded
Structure3 Way L-port/T-port
Body MaterialStainless steel
Core MaterialStainless steel
Sealing MaterialPTFE: -30°C ~ 180°C
Output Torque50 to 4000Nm
Angle of Rotation90° ±4°
90° Cycle Time 15S/30S/60S
Shell MaterialsAluminium Alloy
Optional Voltage DC24V (±10%), AC110-220V, 50/60Hz
Protection Class IP65, IP68(Optional)
ON/OFF TypeFeedback: the Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA
Regulation TypeInput & Output Signal: DC 4-20mA, DC 0-10V, DC 1-5V
Field OperationThe Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus
Voltage OptionalAC 110-240V 380V 50/60Hz; DC12V,DC24V,Special Voltage Can be Customized

Connection Diagram

Regulation-type electric valve actuator, opened to show the digital control module
Intelligent-type electric valve actuator, opened to show wiring and an LCD control panel
On/off-type electric valve actuator, opened to show the position dial and terminal block
