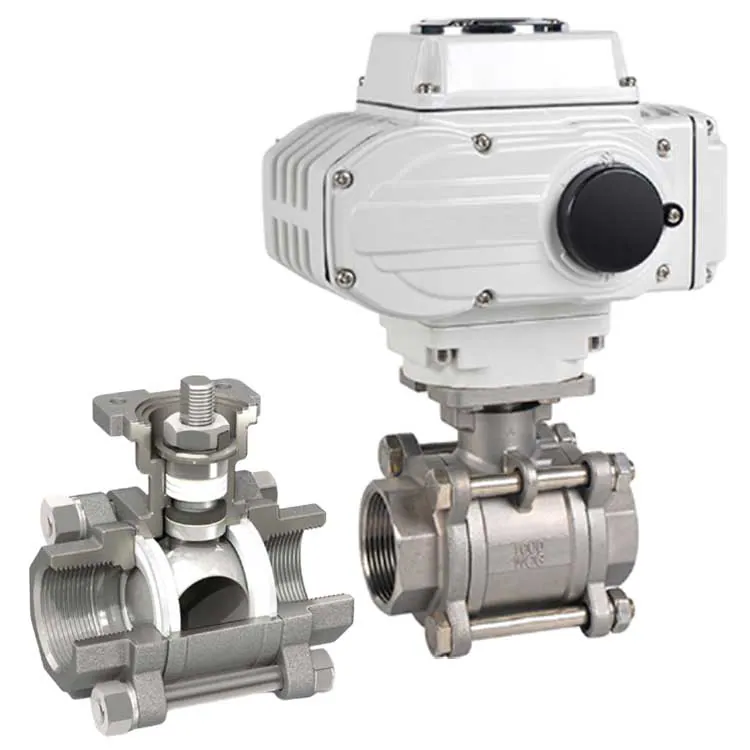

Budmore 2 way Electric Ball Valve BM DN15-DN200

Budmore Flange 2 way Electric Ball Valve using silica sol precision casting, high platform design,which connect with the electric actuator without bracket and connecting shaft, can be used as flow control function.

  • 304
  • Feedback signal : 4-20mA/0-10V/1-5V
Budmore 2 way Electric Ball Valve BM DN15-DN200

Overview

Introduction

Budmore Flange 2 way Electric Ball Valve using silica sol precision casting, high platform design,which connect with the electric actuator without bracket and connecting shaft, can be used as flow control function. Through selection of the valve body, seat materials suitable for different working medium. The control part adopts electric actuator, pneumatic actuator to achieve automatic control.

Features

  • Fire protection design.
  • ISO5211 standard direct mounting actuator.
  • Antistatic device between the core and the valve body.
  • Stem explosion-proof design.
  • Double butterfly shaped spring automatic compression packing design.
  • Allow pressure differential: Less than nominal pressure 1.6MPa
  • Zero leakage.
  • Return difference: ±2.5%.

Specification

Nominal sizeDN15-DN200
Body materialWCB, 304, 316, 316L
Connection typeFlange, Thread type
Pressure classPN16-PN4.0MPa
Structure typeFloating ball core
Seat materialPTFE: -30~180C
Core material304, 316, 316L
Stem material304
Applicable mediumWater
On-off typeFeedback signal: Passive contact signal/4-20mA/ resistance signals.
Regulation typeInput signal 4-20mA/0-10V/1-5V
Feedback signal4-20mA/0-10V/1-5V
Voltage OptionalAC220V\380V\110V\24V DC12V\24V etc.; Special voltage can be customized.
Explosion-proof classCan be choose explosion-proof type

Connection Diagram

Regulation-type electric valve actuator, opened to show the digital control module
Intelligent-type electric valve actuator, opened to show wiring and an LCD control panel
On/off-type electric valve actuator, opened to show the position dial and terminal block
