Discontinued product

automation-monitor BM20AM001

This model is no longer sold. The page is kept as a reference for existing owners, and our team can still help with support questions.

  • Automation monitor
  • 5W
  • Supply input voltage: 230v AC 50Hz
automation-monitor BM20AM001

Overview

Display live status of all connected device.

Features

Data loggingYes (with communication controller )
Data backupYes (with communication controller )
Cloud memory backupYes (with communication controller )
Wi-Fi connectivityYes (with communication controller )
Other device connectivityYes (with communication controller )
Bluetooth connectivityNo
SIM connectivityNo
GUI connectivityYes
AC error detectionNo
Automatic water level controlNo
Dry run sensing for motorNo
Weather proofYes
ModeNA

Specification

ModelBM20AM001
Supply input voltage230v AC 50Hz
Operating voltage5v
Rated power5W
Cabinet materialPlastic ABS
Working temperature-40°C to 45 +°C
Mounting typeRail mount
Sensor voltage5 – 12V
InputNo
OutputNo
SensorNo
ActuatorsNo
DisplayNo
RTC moduleYes
LED indicationYes
Security alarmNo

Connection Diagram

BudMore monitor wiring diagram showing power inputs and a display of conductivity, pH, temperature, ammonia and DO

Images & Videos

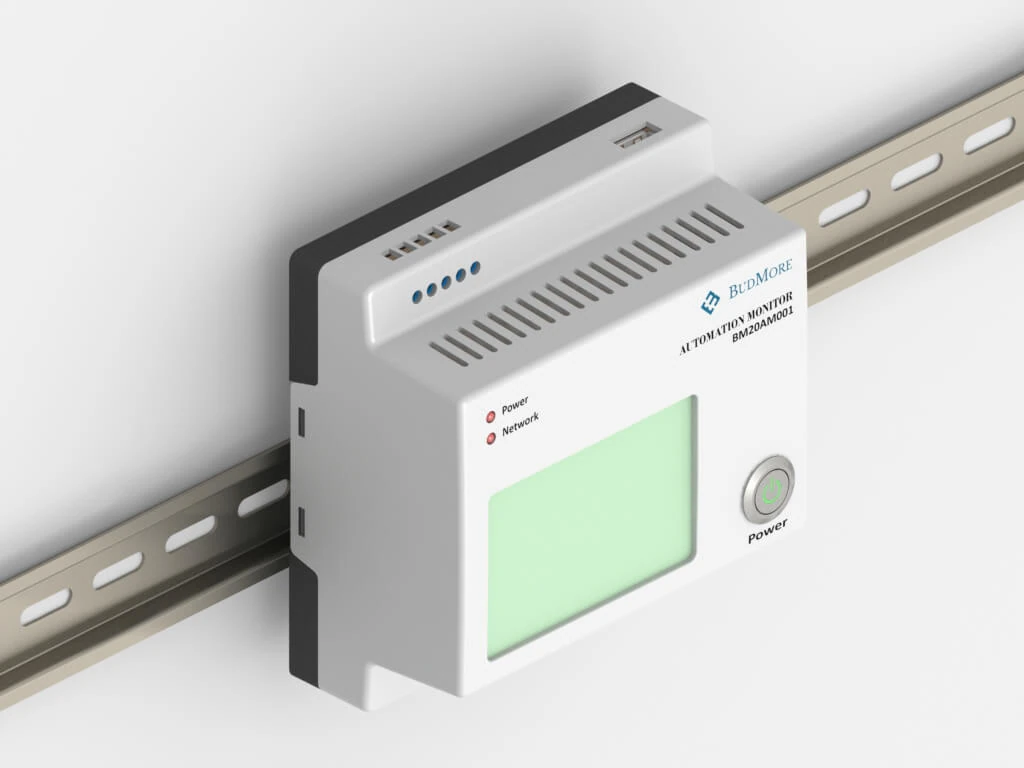

BudMore BM20AM001 automation monitor with display, mounted on a DIN rail

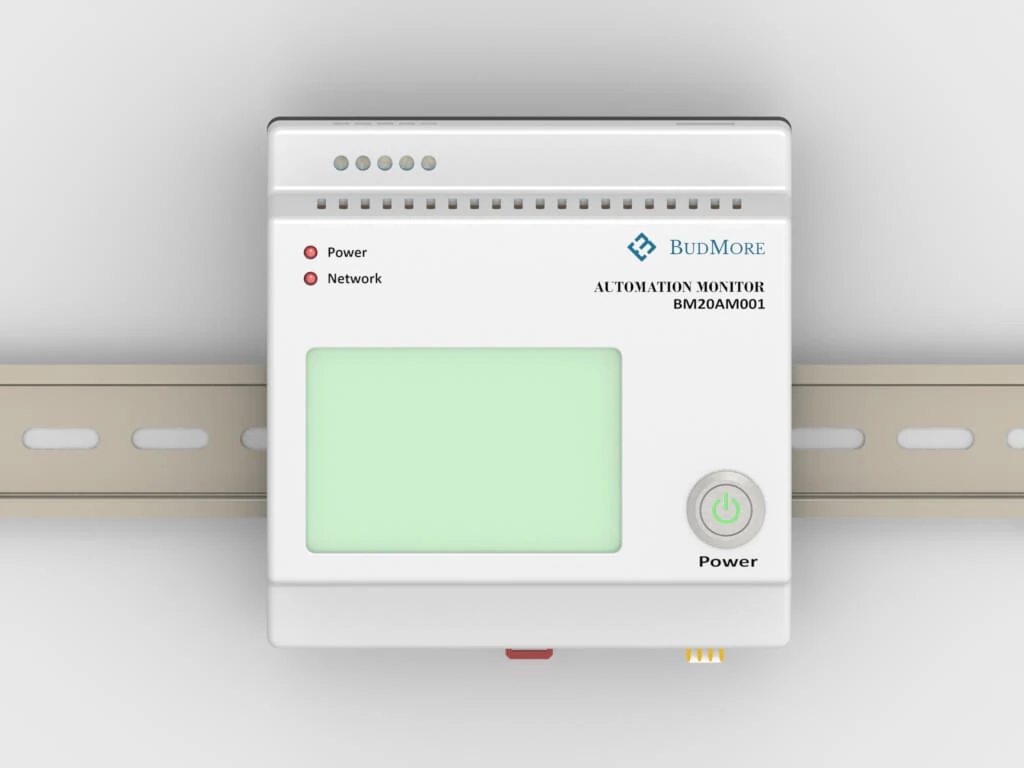

Front of the BudMore BM20AM001 automation monitor with display and power button

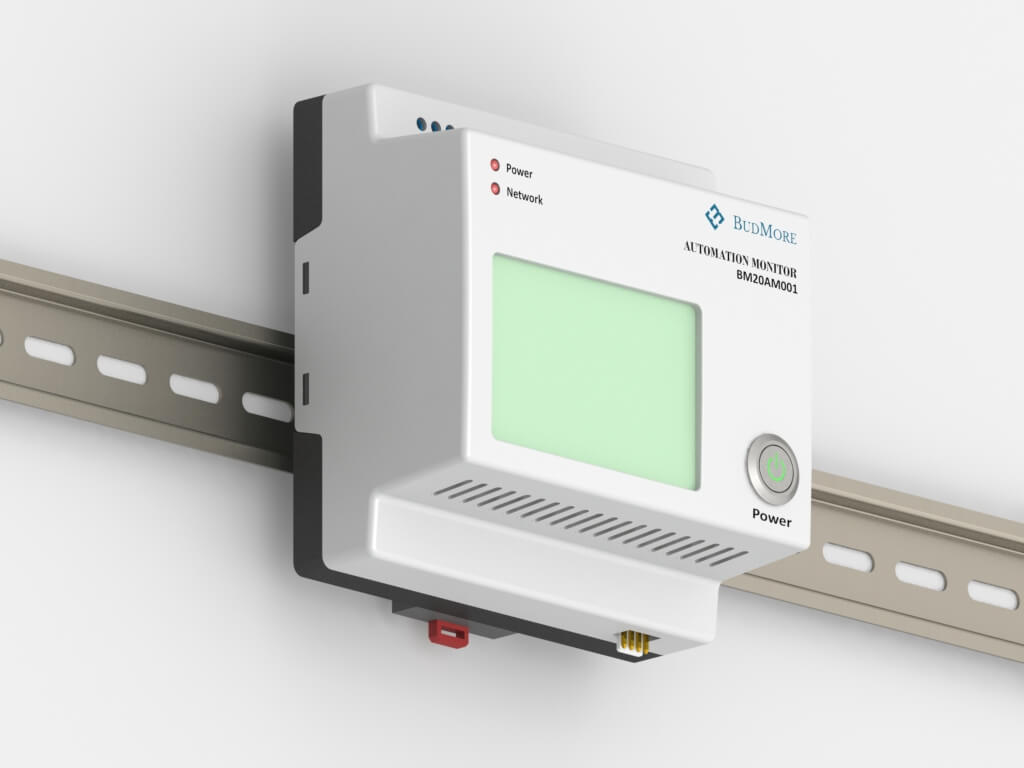

BudMore BM20AM001 automation monitor on a DIN rail, angled view
