Discontinued product

Automatic Feeder BM20AFC001

An automatic fish feeder is designed to dispense the right amount of food in to your aquarium/pond at a certain time each day. This certain time can be set by the user in a time scheduling manner.

This model is no longer sold. The page is kept as a reference for existing owners, and our team can still help with support questions.

  • Automatic feeder controller
  • 5W
  • Supply input voltage: 230v AC 50Hz
Automatic Feeder BM20AFC001

Overview

An automatic fish feeder is designed to dispense the right amount of food in to your aquarium/pond at a certain time each day. This certain time can be set by the user in a time scheduling manner. Some can be set to deliver the food more than once a day. This helps make sure your fish are fed when they need to be fed in case you go away on vacation or you simply forget.

Features

Data loggingYes (with communication controller )
Data backupYes (with communication controller )
Cloud memory backupYes (with communication controller )
Wi-Fi connectivityYes (with communication controller )
Other device connectivityYes (with communication controller )
Bluetooth connectivityNo
SIM connectivityNo
GUI connectivityYes
AC error detectionYes (as Input)
Automatic water level controlNo
Dry run sensing for motorNo
Weather proofYes
ModeManual, schedule

Specification

ModelBM20AFC001
Supply input voltage230v AC 50Hz
Operating voltage5v
Rated power5W
Cabinet materialPlastic ABS
Working temperature-40°C to 45 +°C
Mounting typeRail mount
Sensor voltage5 – 12V
InputDigital Sensing, Ana log Sensing
OutputRelay NO (Normally Open) contact
SensorEmpty sensor, Load cell
ActuatorsWater Pump ( 1Hp 230v max) Feeding motors
DisplayNo
RTC moduleYes
LED indicationYes
Security alarmYes

Connection Diagram

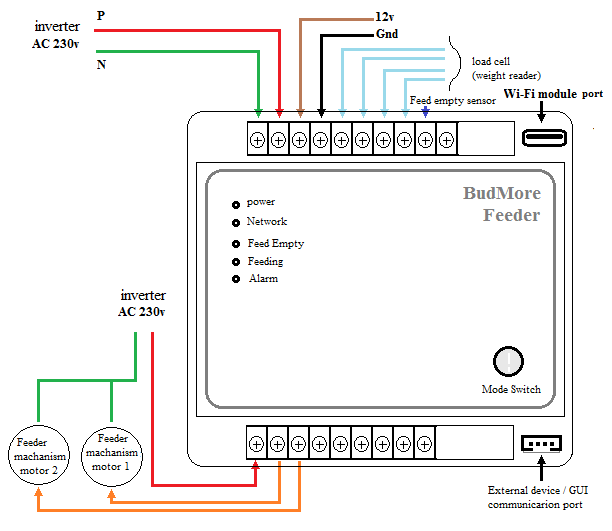

BudMore feeder wiring diagram showing power, load cell, feed empty sensor and feeder motor connections

Images & Videos

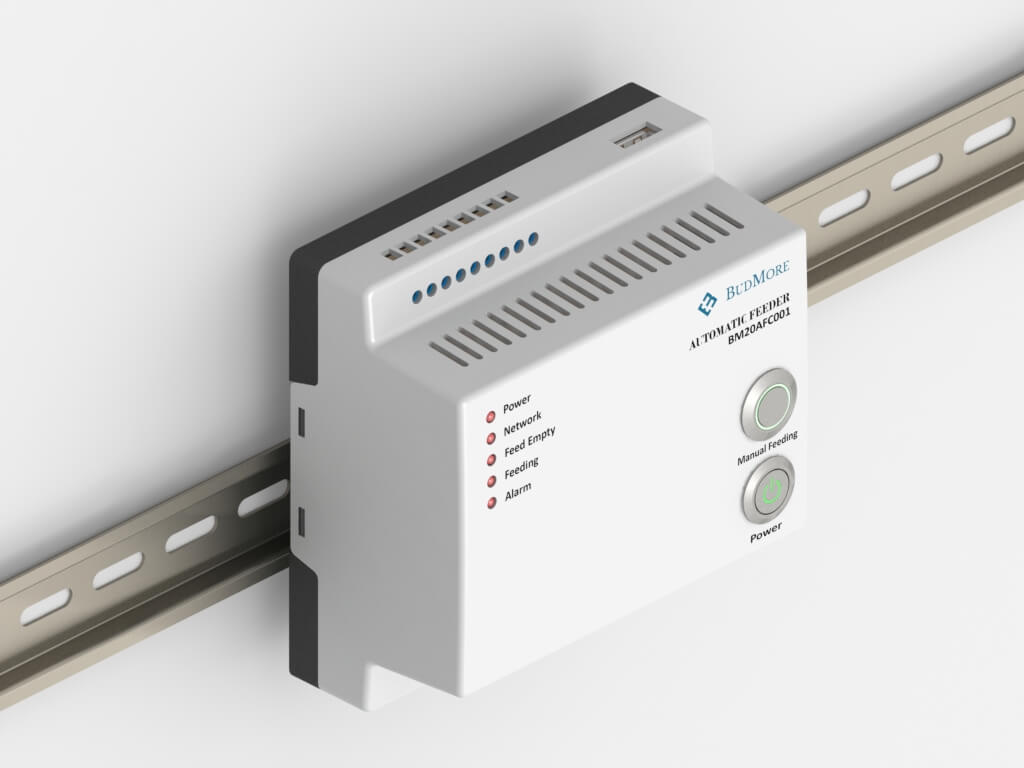

BudMore BM20AFC001 automatic feeder controller mounted on a DIN rail, side angle

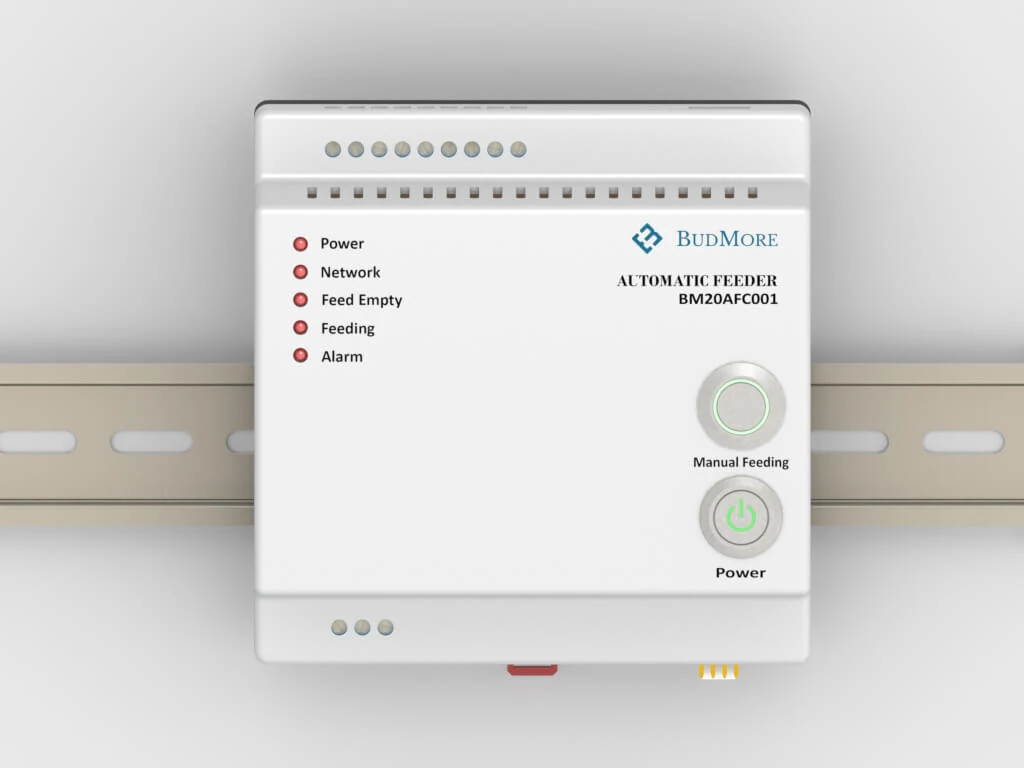

Front of the BudMore BM20AFC001 automatic feeder controller with manual feeding and power buttons

Automatic Feeder

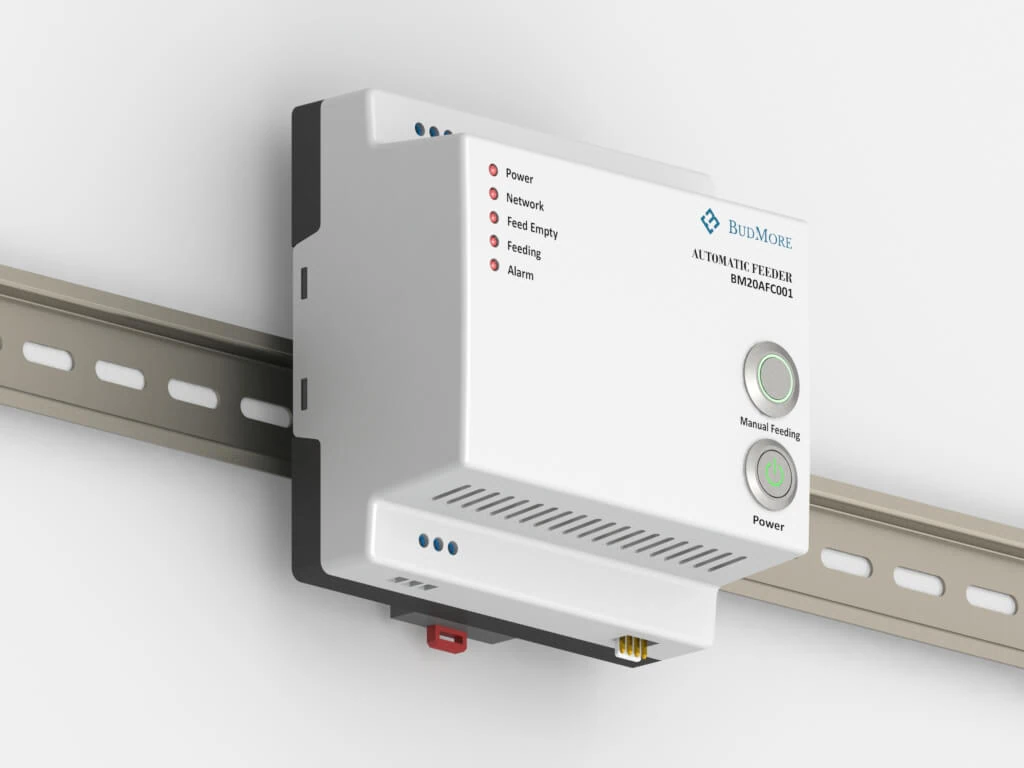

BudMore BM20AFC001 automatic feeder controller on a DIN rail, angled view
