Discontinued product

Automatic Circulation Controller BM20CC001

Circulation controller circulates the water flow. It is possible to setup the circulation in time scheduling manner with in a particular time interval.

This model is no longer sold. The page is kept as a reference for existing owners, and our team can still help with support questions.

  • 5W
  • Supply input voltage: 230v AC 50Hz
Automatic Circulation Controller BM20CC001

Overview

Circulation controller circulates the water flow. It is possible to setup the circulation in time scheduling manner with in a particular time interval. Can also operate manually

Features

Data loggingYes (with communication controller )
Data backupYes (with communication controller )
Cloud memory backupYes (with communication controller )
Wi-Fi connectivityYes (with communication controller )
Other device connectivityYes (with communication controller )
Bluetooth connectivityNo
SIM connectivityNo
GUI connectivityYes
AC error detectionYes ( as input)
Automatic water level controlYes
Dry run sensing for motorYes
Weather proofYes
ModeManual, Schedule, Error, Water level

Specification

ModelBM20CC001
Supply input voltage230v AC 50Hz
Operating voltage5v
Rated power5W
Cabinet materialPlastic ABS
Working temperature-40°C to 45 +°C
Mounting typeRail mount
Sensor voltage5 – 12V
InputDigital Sensors
OutputRelay NO (Normally Open) contact
SensorFloat Sensor
ActuatorsWater Pump ( 1Hp 230v max) Circulation motors, Inlet water pump & Drain water pump
DisplayNo
RTC moduleYes
LED indicationYes
Security alarmNo

Connection Diagram

BudMore circulator wiring diagram showing power, sensor inputs, circulator and inlet/outlet motor connections

Images & Videos

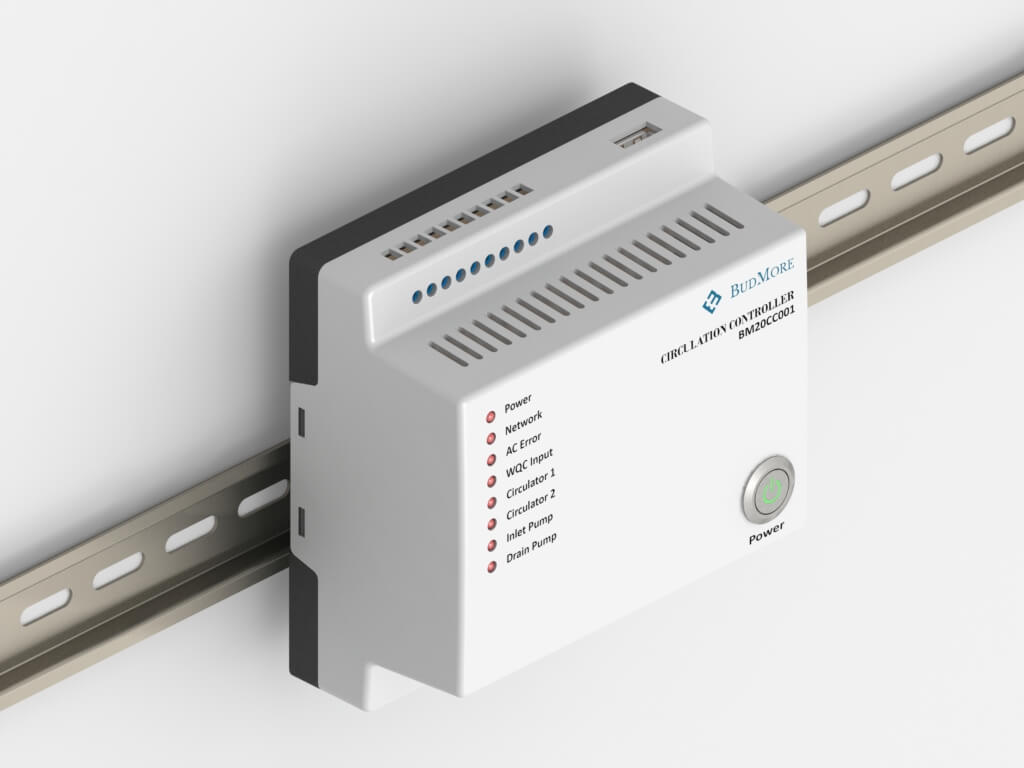

BudMore BM20CC001 circulation controller mounted on a DIN rail, side angle

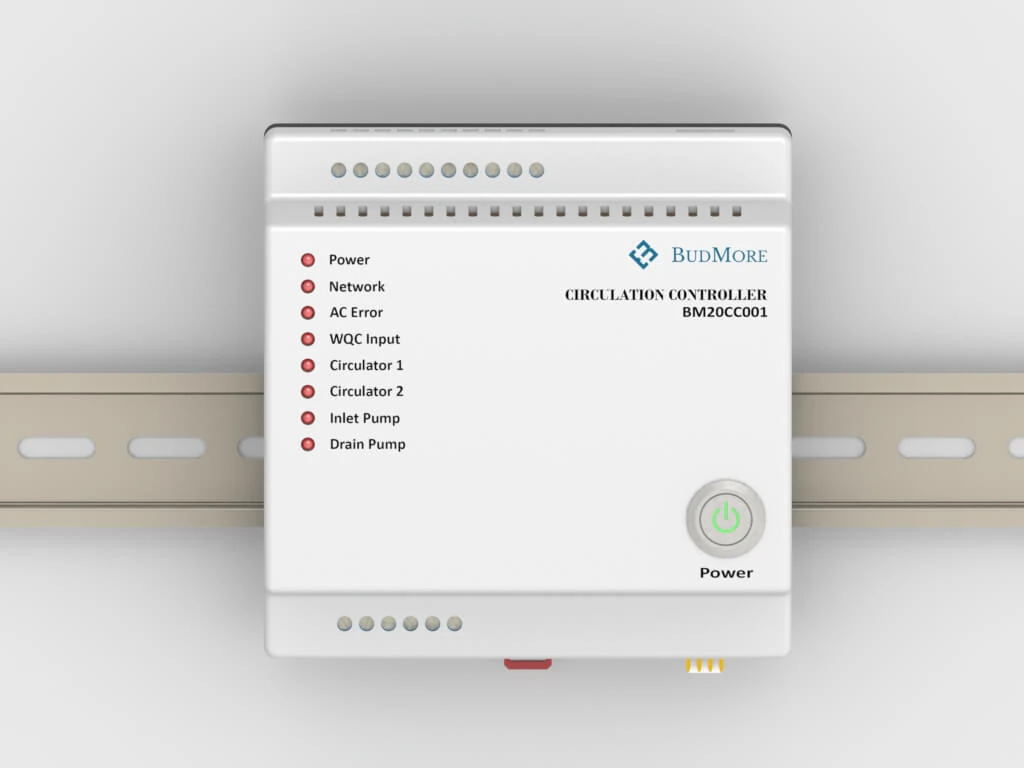

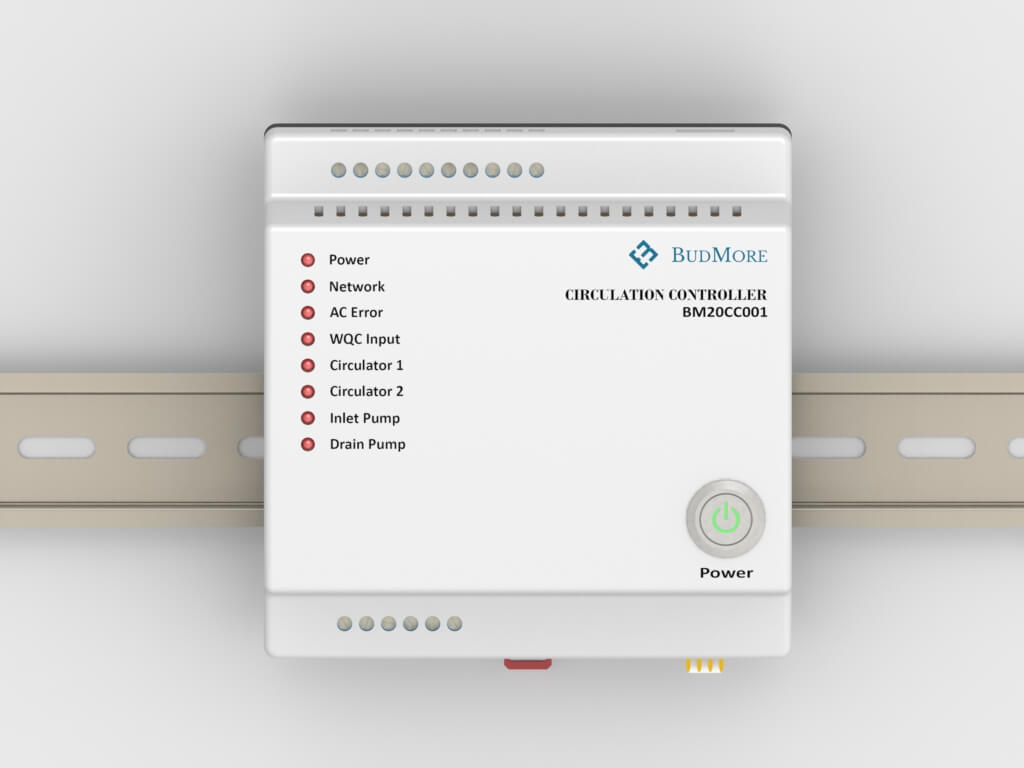

Front of the BudMore BM20CC001 circulation controller with status lights and power button

Circulation Controller

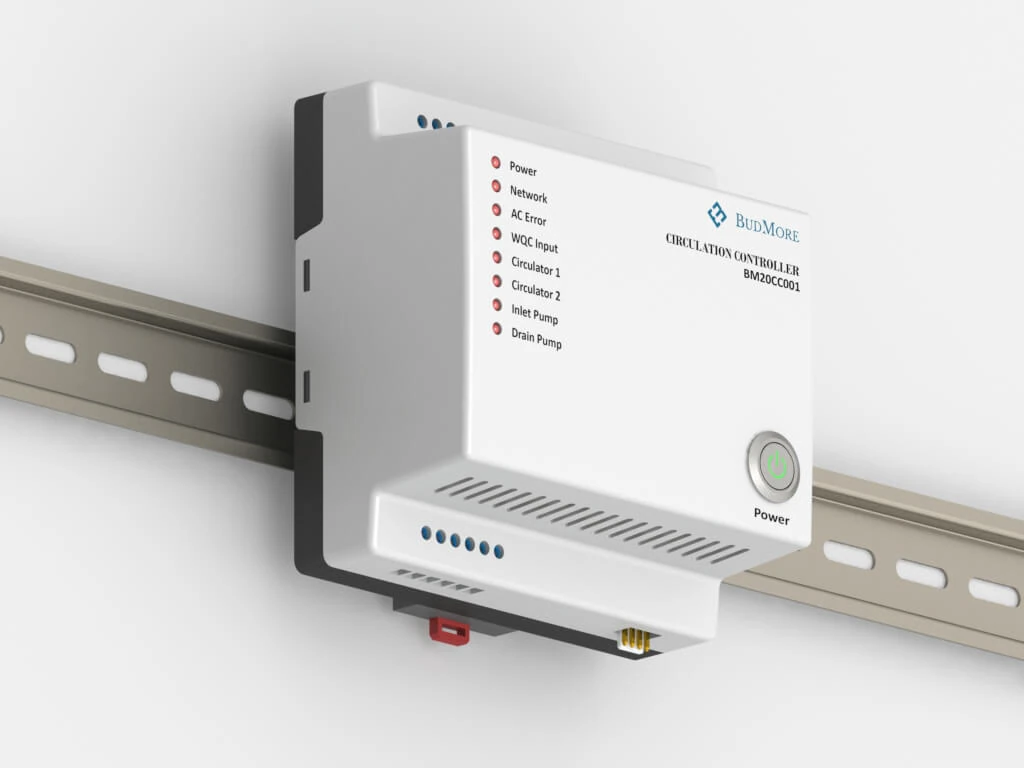

BudMore BM20CC001 circulation controller on a DIN rail, angled view
