Discontinued product

Aeration Controller BM20AC001

The aeration controller pumps air into the water. Aerator time scheduling allows scheduled aeration within a time interval. Secondary aeration active during night time for additional aeration.

This model is no longer sold. The page is kept as a reference for existing owners, and our team can still help with support questions.

  • Aerator controller
  • 5W
  • Supply input voltage: 230v AC 50Hz
Aeration Controller BM20AC001

Overview

The aeration controller pumps air into the water. Aerator time scheduling allows scheduled aeration with

in a time interval. Secondary aeration active during night time for additional aeration.

Features

Data loggingYes (with communication controller )
Data backupYes (with communication controller )
Cloud memory backupYes (with communication controller )
Wi-Fi connectivityYes (with communication controller )
Other device connectivityYes (with communication controller )
Bluetooth connectivityNo
SIM connectivityNo
GUI connectivityYes
AC error detectionYes ( as input)
Automatic water level controlYes
Dry run sensing for motorYes
Weather proofYes
ModeManual, Schedule, Error

Specification

ModelBM20AC001
Supply input voltage230v AC 50Hz
Operating voltage5v
Rated power5W
Cabinet materialPlastic ABS
Working temperature-40°C to 45 +°C
Mounting typeRail mount
Sensor voltage5 – 12V
InputDigital Sensors
OutputRelay NO (Normally Open) contact
SensorFloat Sensor
ActuatorsWater Pump ( 1Hp 230v max) Aeration motors, Inlet water pump & Drain water pump
DisplayNo
RTC moduleYes
LED indicationYes
Security alarmNo

Connection Diagram

BudMore aerator controller wiring diagram showing power, sensor inputs, aerator and inlet/outlet motor connections

Images & Videos

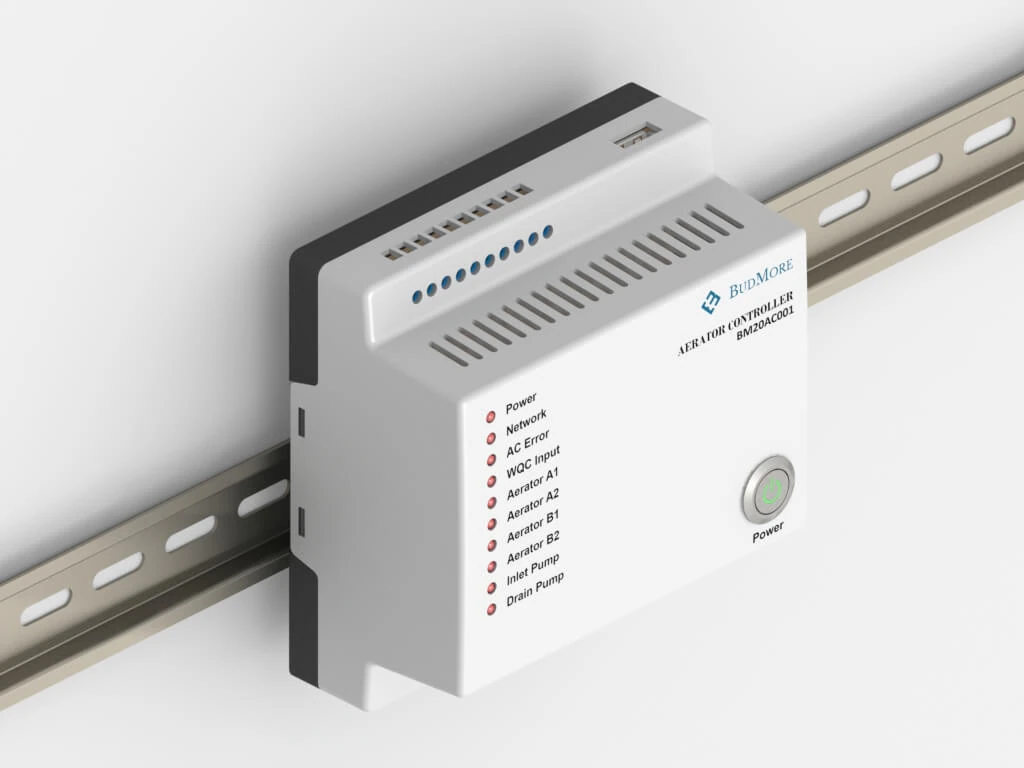

BudMore BM20AC001 aerator controller mounted on a DIN rail, angled view

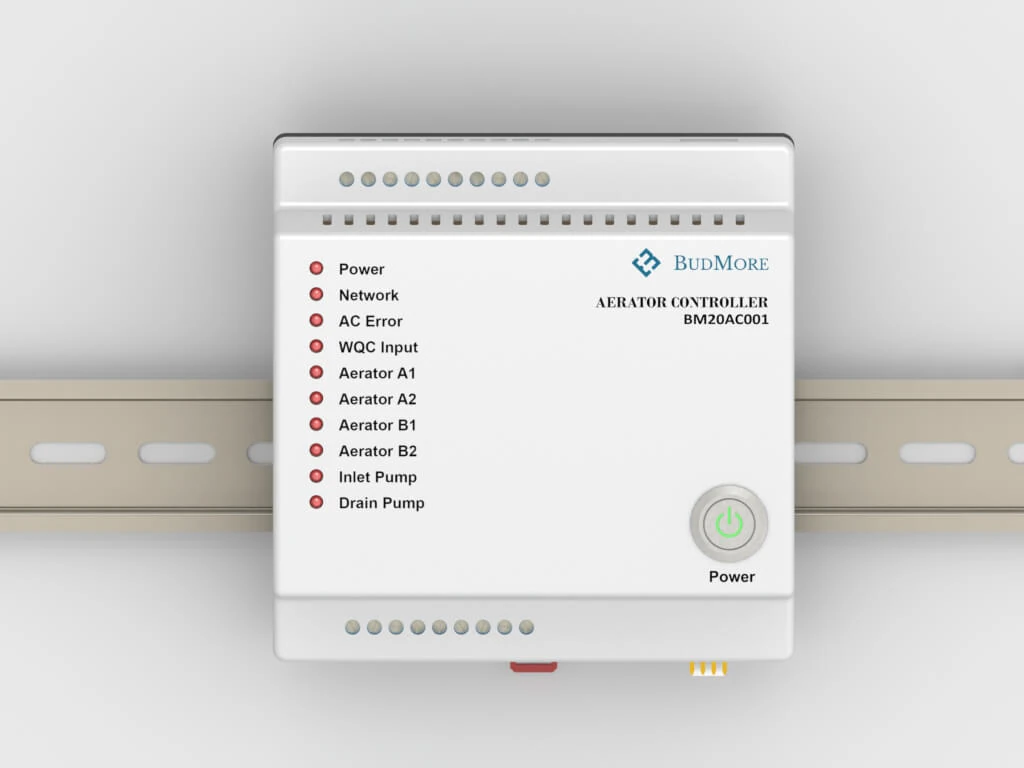

Front of the BudMore BM20AC001 aerator controller with status lights and power button

Aerator Controller

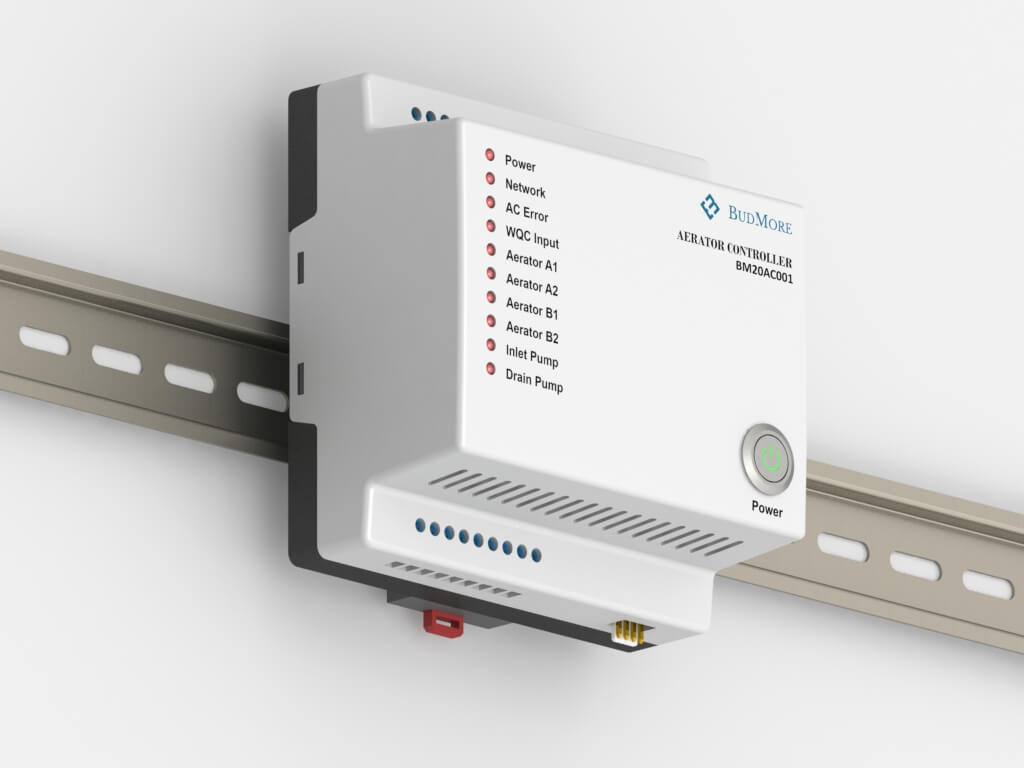

BudMore BM20AC001 aerator controller on a DIN rail, side angle
